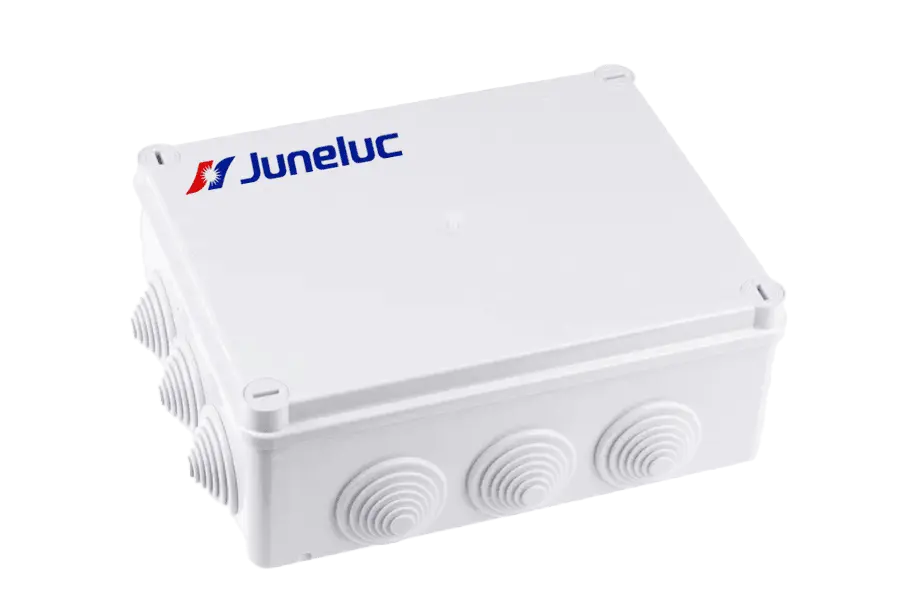

JLBA808050
JLBA808050

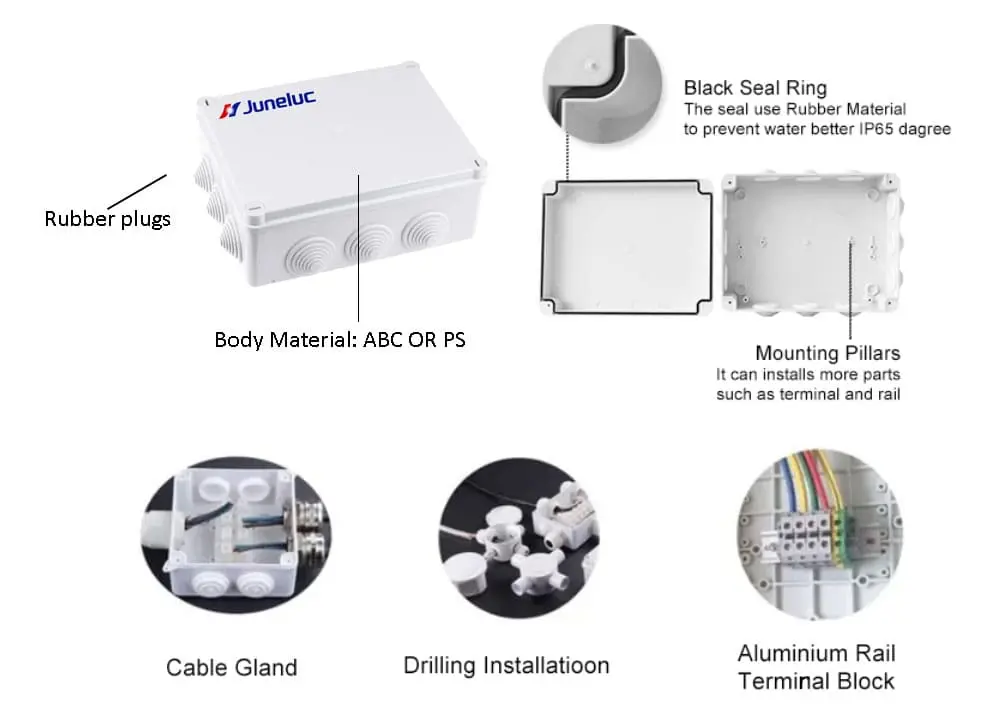

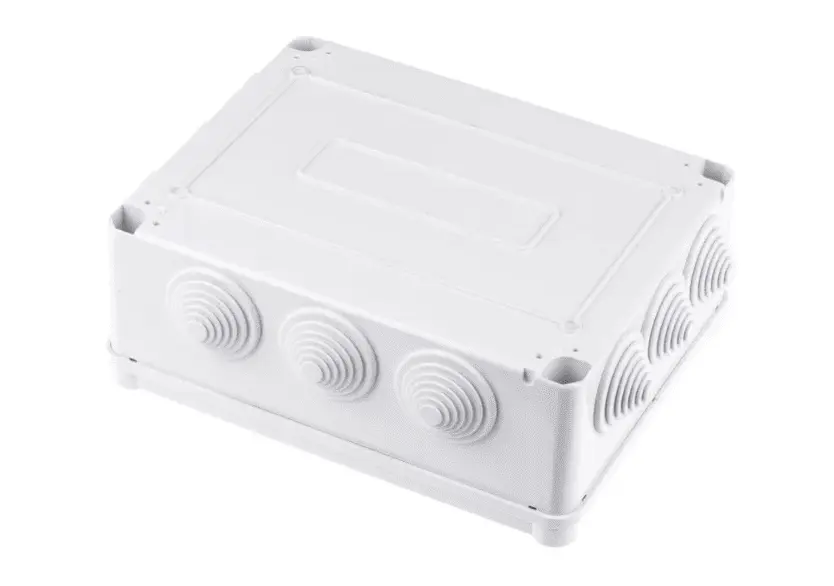

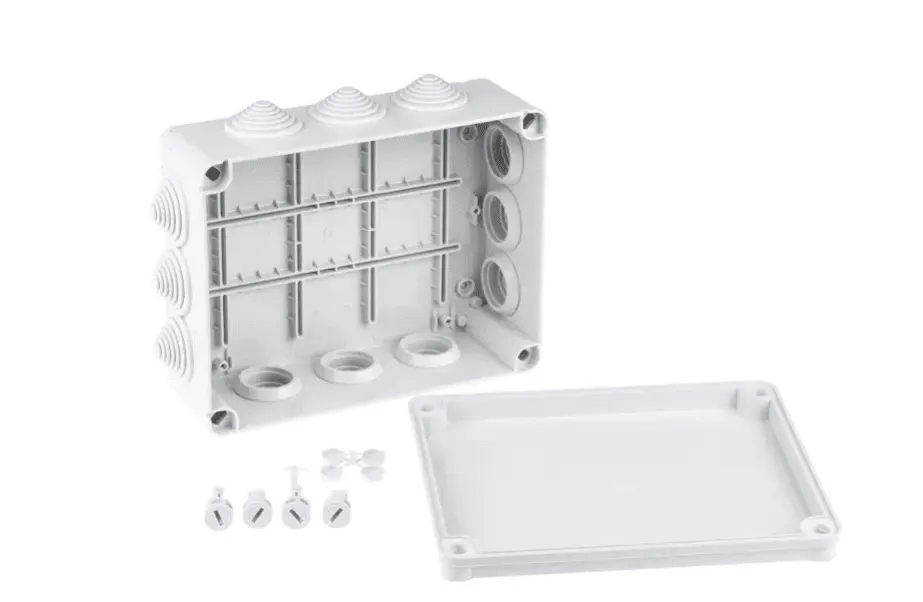

IP65 Electrical Junction Box is used as a common meeting point for electrical wires and is an important part of the electrical wiring system of homes and buildings. It is made of materials such as ABS and PS, with elegant external appearance and firm performance. Cover and bottom are combined by screws. The weight of plastic enclosure is the quarter of iron enclosure. So, the finished products can be easily transported and installed. All the products are with anti-corrosion performance and good insulation performance.
Specifications
| Model (W*H*D) | Holes Quantity/Sizes(mm) | (P)L*W*Hmm) | QTY/CTN | (C)W*H*D(mm) |
| JLBA808050 | "7/25 | 80*80*50 | 200 | 71*44.5*27 |
| JLBA858550 | "7/25 | 85*85*50 | 200 | 71*44.5*27 |
| JLBA10010070 | "7/25 | 100*100*70 | 100 | 61*49*34.5 |
| JLBA15015070 | "7/25 | 150*150*70 | 60 | 64.5*36.5*40 |
| JLBA15011070 | "10/25 | 150*110*70 | 60 | 63*47.5*36 |
| JLBA20010070 | "8/25 | 200*100*70 | 60 | 63*42*36 |
| JLBA20015580 | "10/36 | 200*155*80 | 40 | 62.5*41*40.5 |
| JLBA20020080 | "12/36 | 200*200*80 | 40 | 82*42*41.5 |
| JLBA25020080 | "12/36 | 250*200*80 | 40 | 80.5*52.0.40.5 |
| JLBA25520080 | "12/36 | 255*200*80 | 40 | 55*44*79 |
| JLBA300250120 | "12/36 | 300*250*120 | 20 | 64*54*61.5 |
| JLBA400350120 | "16/36 | 400*350*120 | 40 | 71*44.5*27 |
