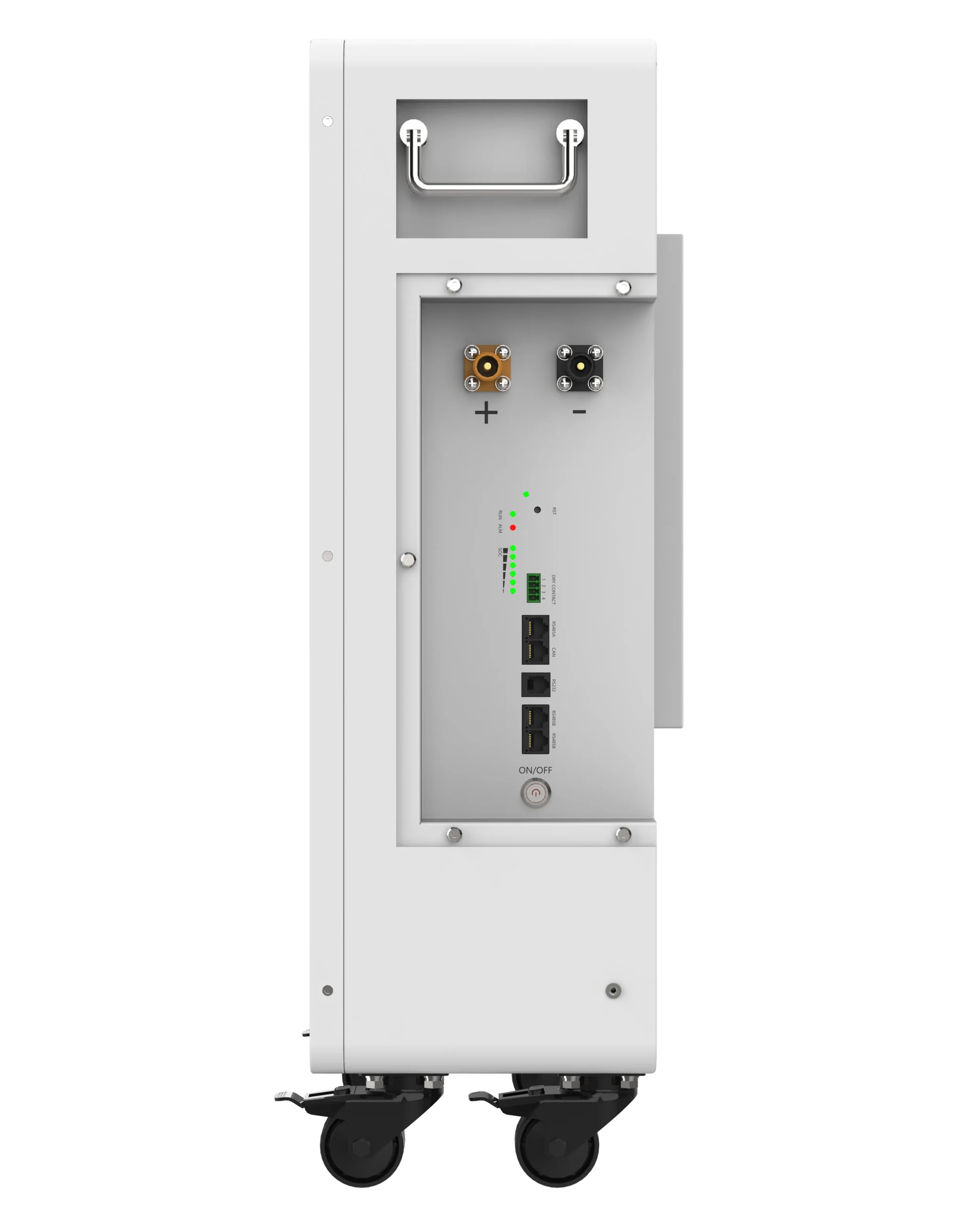

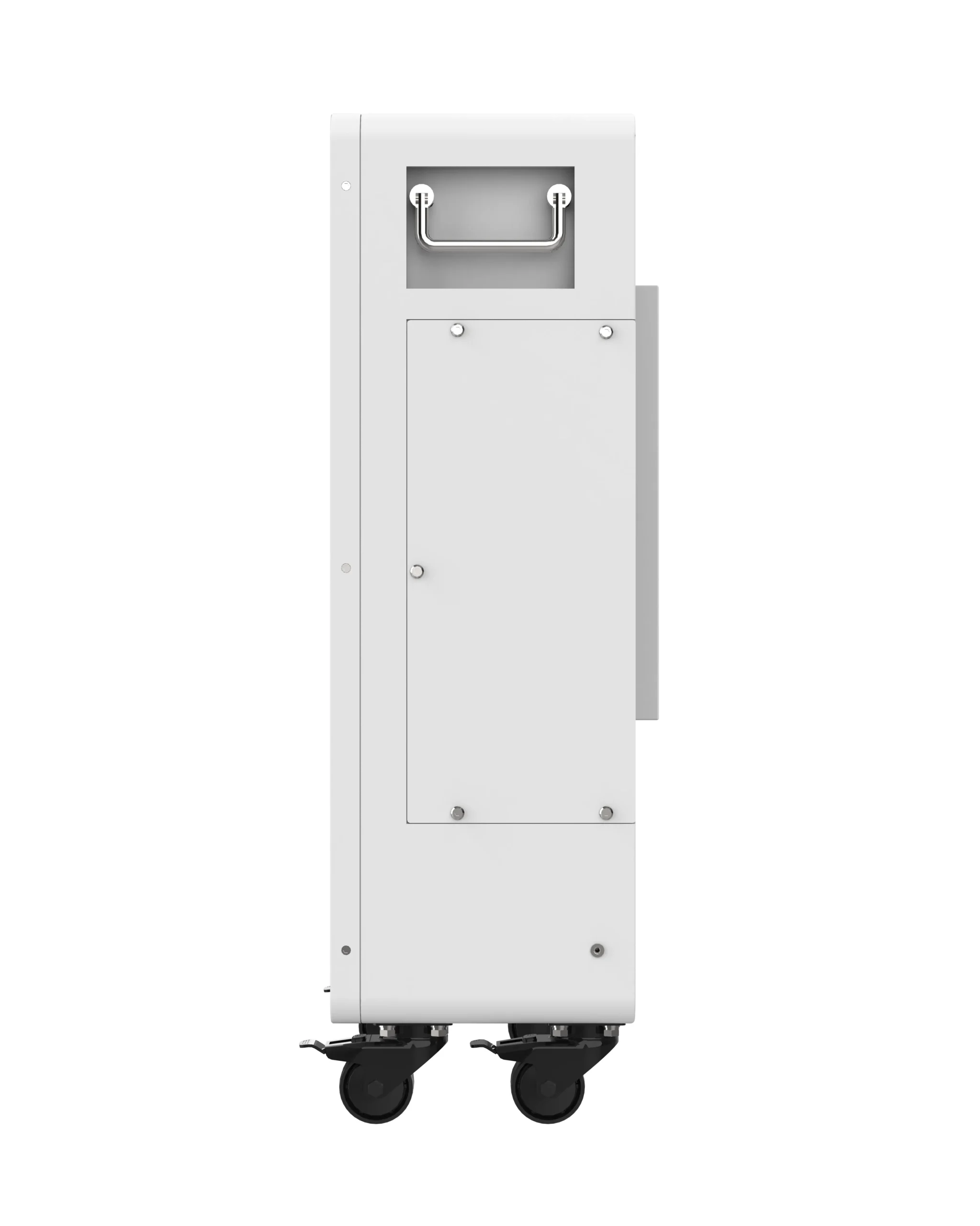

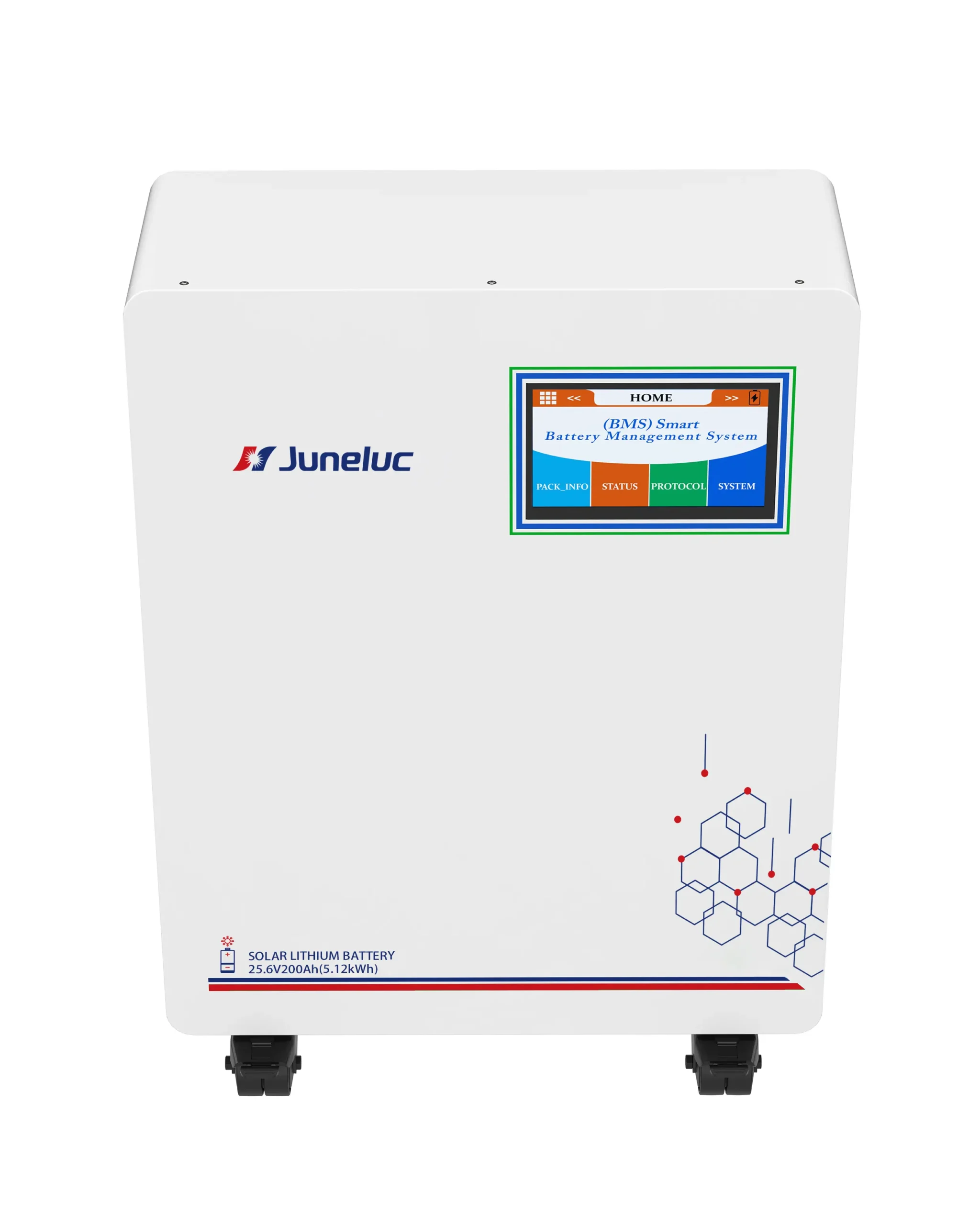

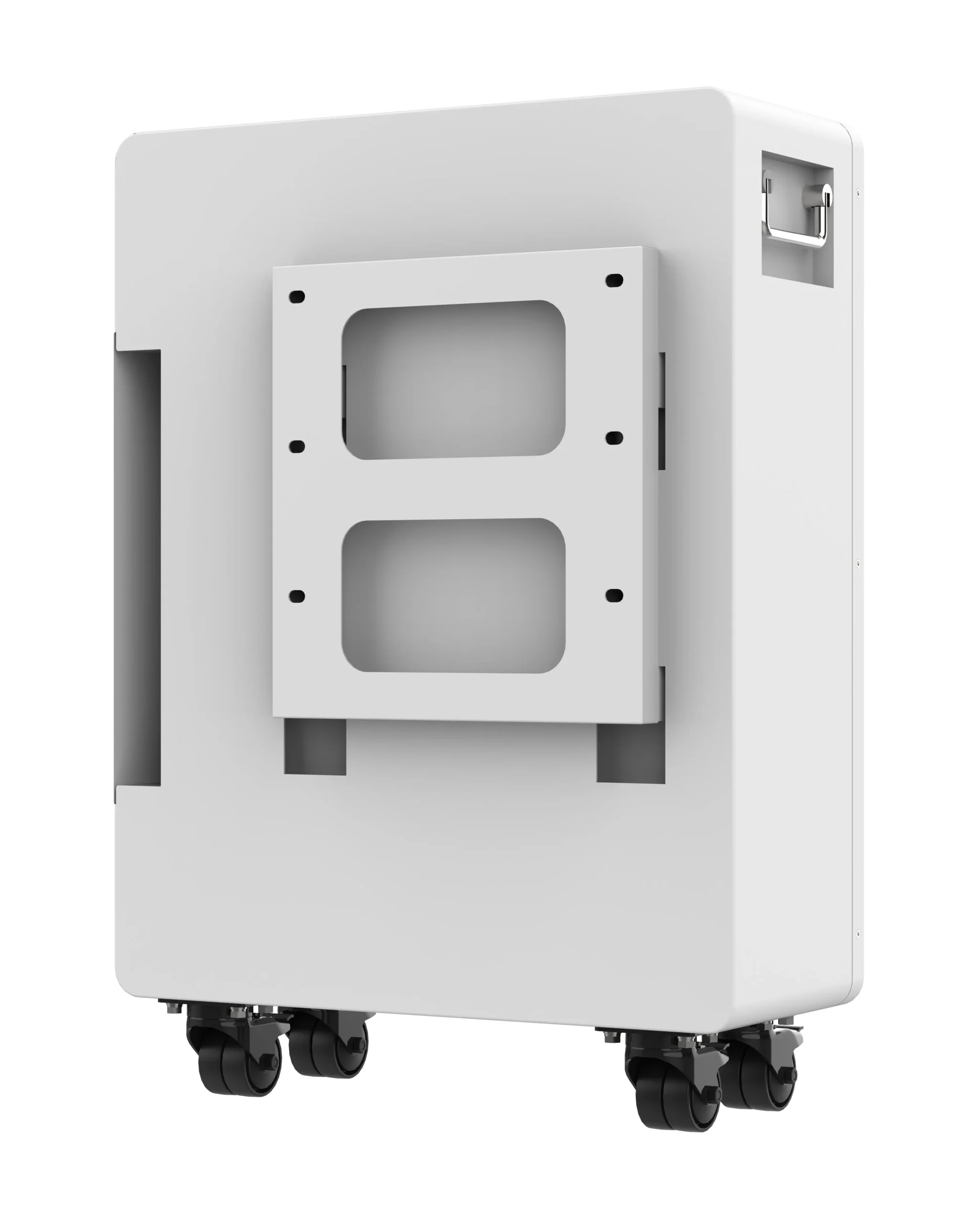

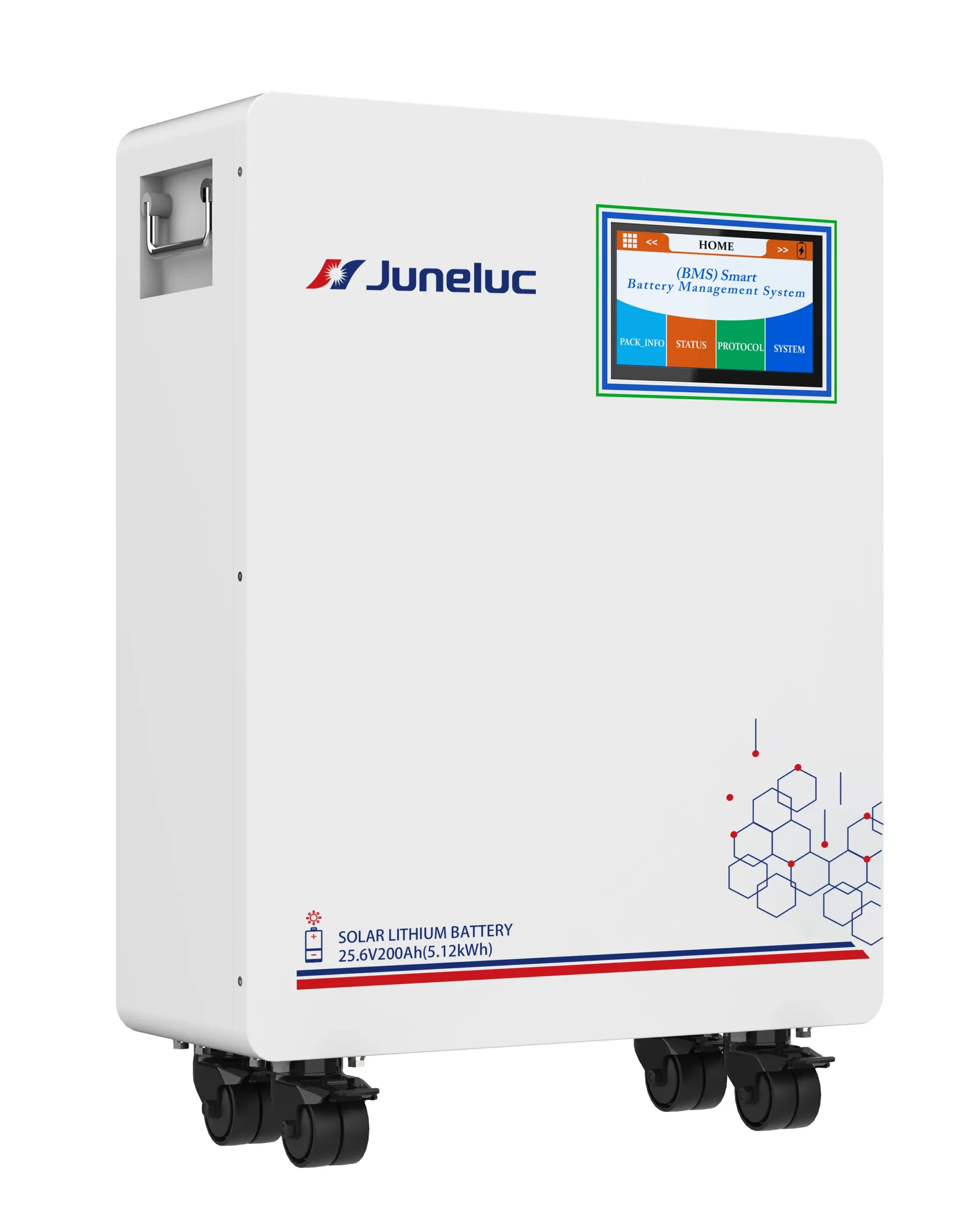

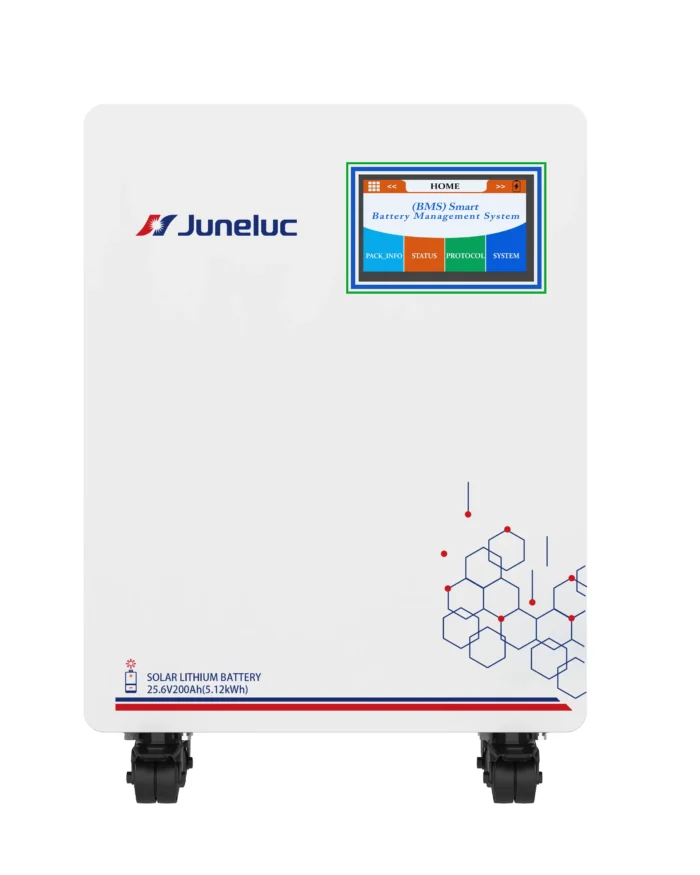

JLES-W3 Series Wheel-Mounted LiFePO4 Solar Lithium Battery (5.12kWh – 28.67kWh)
JLES-W3 Series Wheel-Mounted LiFePO4 Solar Lithium Battery (5.12kWh – 28.67kWh)
Reliable Power on the Go. The Juneluc JLES-W3 Series is a professional-grade, wheel-mounted LiFePO4 lithium battery designed for versatile energy storage in villas, private homes, and small farms. Featuring advanced safety with an intelligent BMS, it offers over 6000 cycles at 80% DoD and a 10-year design life. With modular scalability of up to 16 units and smart monitoring capabilities via LCD, Bluetooth, or Wi-Fi, this system ensures high-efficiency energy management through a modern touchscreen interface.
Product Description
| Standard | JLES-256200 | JLES-512100 | JLES-512200 | JLES-512280 | JLES-512560 |
|---|---|---|---|---|---|
| Rated Voltage (V) | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated Capacity (Ah) | 200Ah | 100Ah | 200Ah | 280Ah | 560Ah |
| Rated Energy (kWh) | 5.12kWh | 5.12kWh | 10.24kWh | 14.34kWh | 28.67kWh |
| Output Voltage Range (V) | 21.6V-29.2V | 43.2V-58.4V | 43.2V-58.4V | 43.2V-58.4V | 43.2V-58.4V |
| Charging Voltage | 28.8~29.2V | 57.6~58.4V | 57.6~58.4V | 57.6~58.4V | 57.6~58.4V |
| Cut-off Voltage | 21.6V | 43.2V | 43.2V | 43.2V | 43.2V |
| Max Charging Current | 150A | 100A | 150A | 200A | 200A |
| Rec. Charging Current | 50A | 50A | 50A | 100A | 100A |
| Max Discharging Current | 150A | 100A | 150A | 200A | 200A |
| Efficiency (%) | >98% | ||||
| Dimension L*W*H (mm) | 600*480*200 | 600*480*200 | 750*460*200 | 700*550*200 | 850*670*255 |
| Weight (Kg) | ≈45 | ≈45 | ≈95 | ≈117 | ≈215 |
| Humidity | 5% ~ 95% Relative humidity | ||||
| Temperatures | Charge: 0°C~55°C | Discharge: -20°C~60°C | Storage: -10°C~30°C | ||||
| Cycle Life | >6000 times (0.2C, @25°C, 80%DOD) | ||||
| Design Life | >10 years | ||||
| Operating Mode | Touch Screen | ||||
Available Customization Options
Multiple Modes
Of Operation
Of Operation
Multi-language
Display
Display
Multiple Shell
Colors
Colors
Customized
Capacity
Capacity
Customized
Screen
Screen
Customized
Logo
Logo
Application Scenarios
