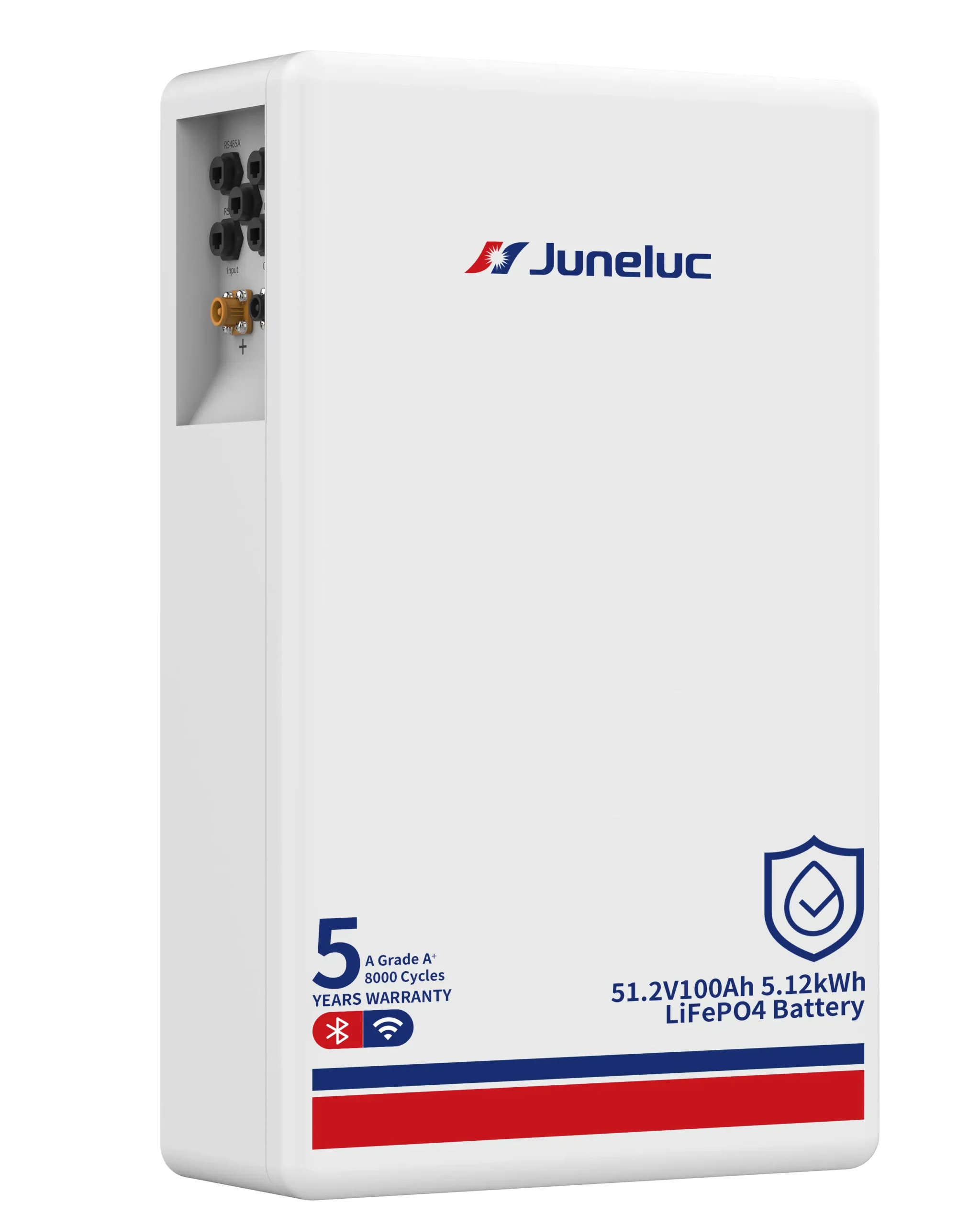

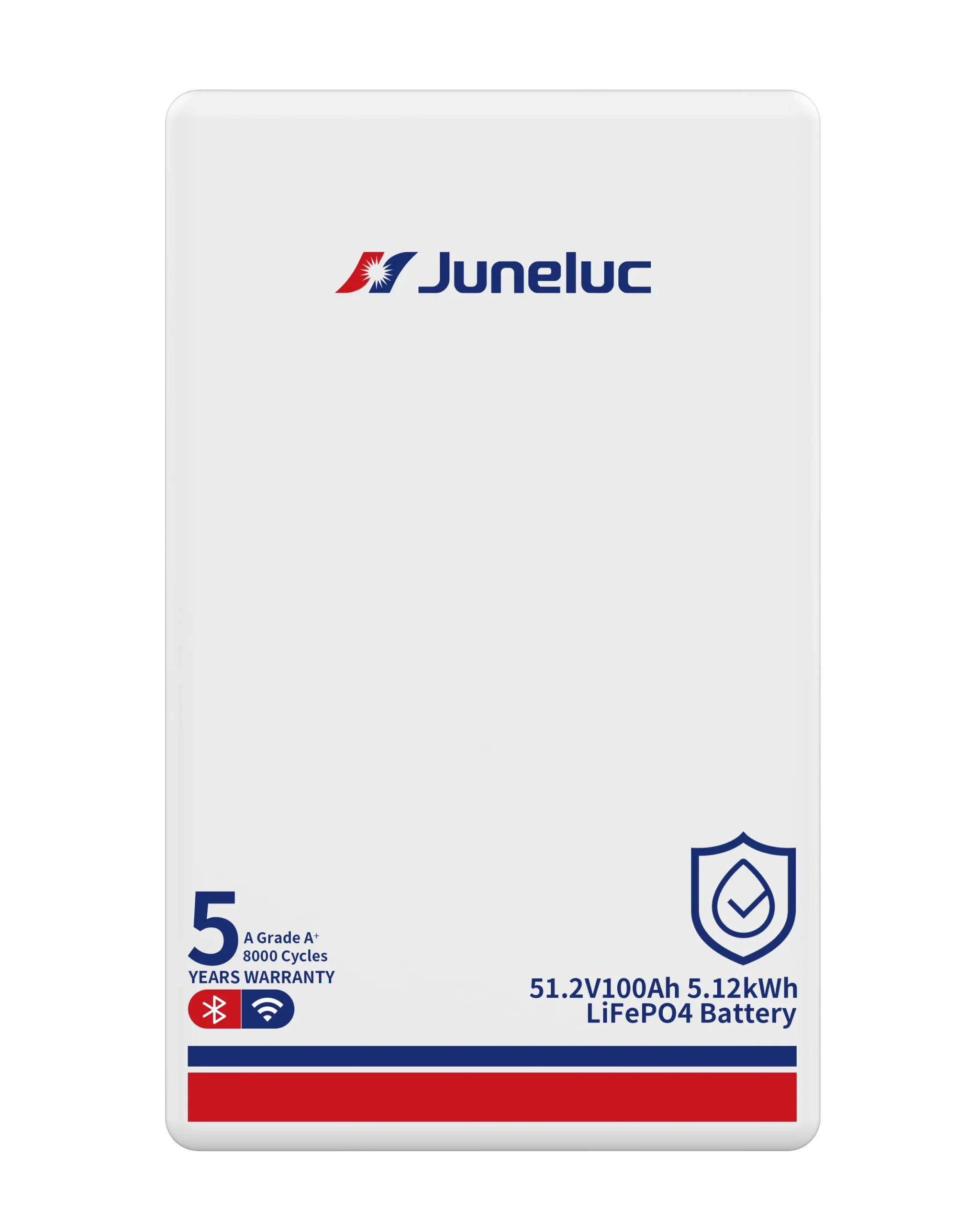

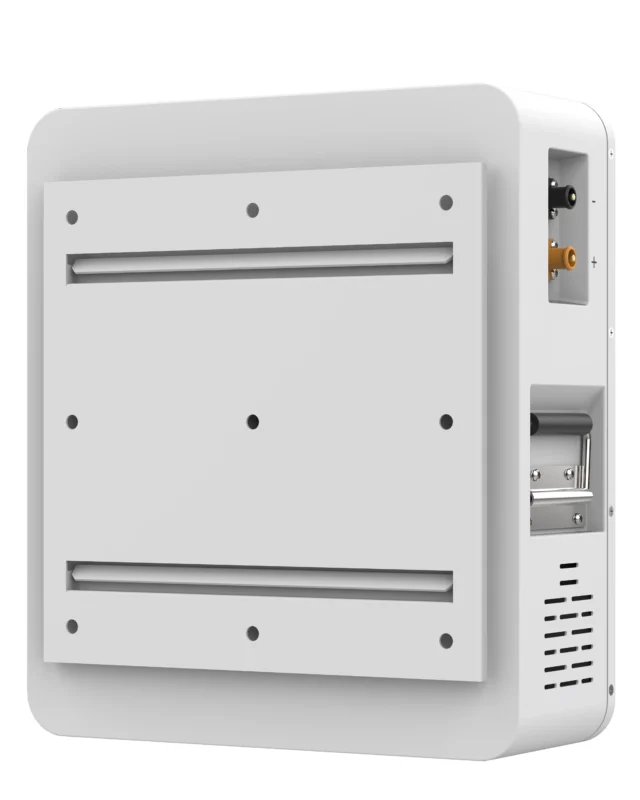

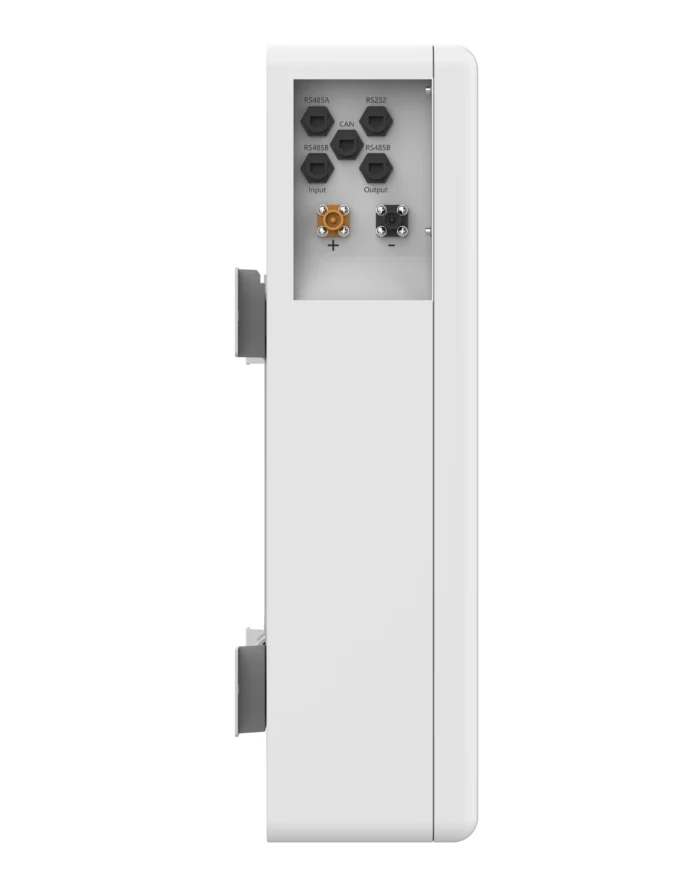

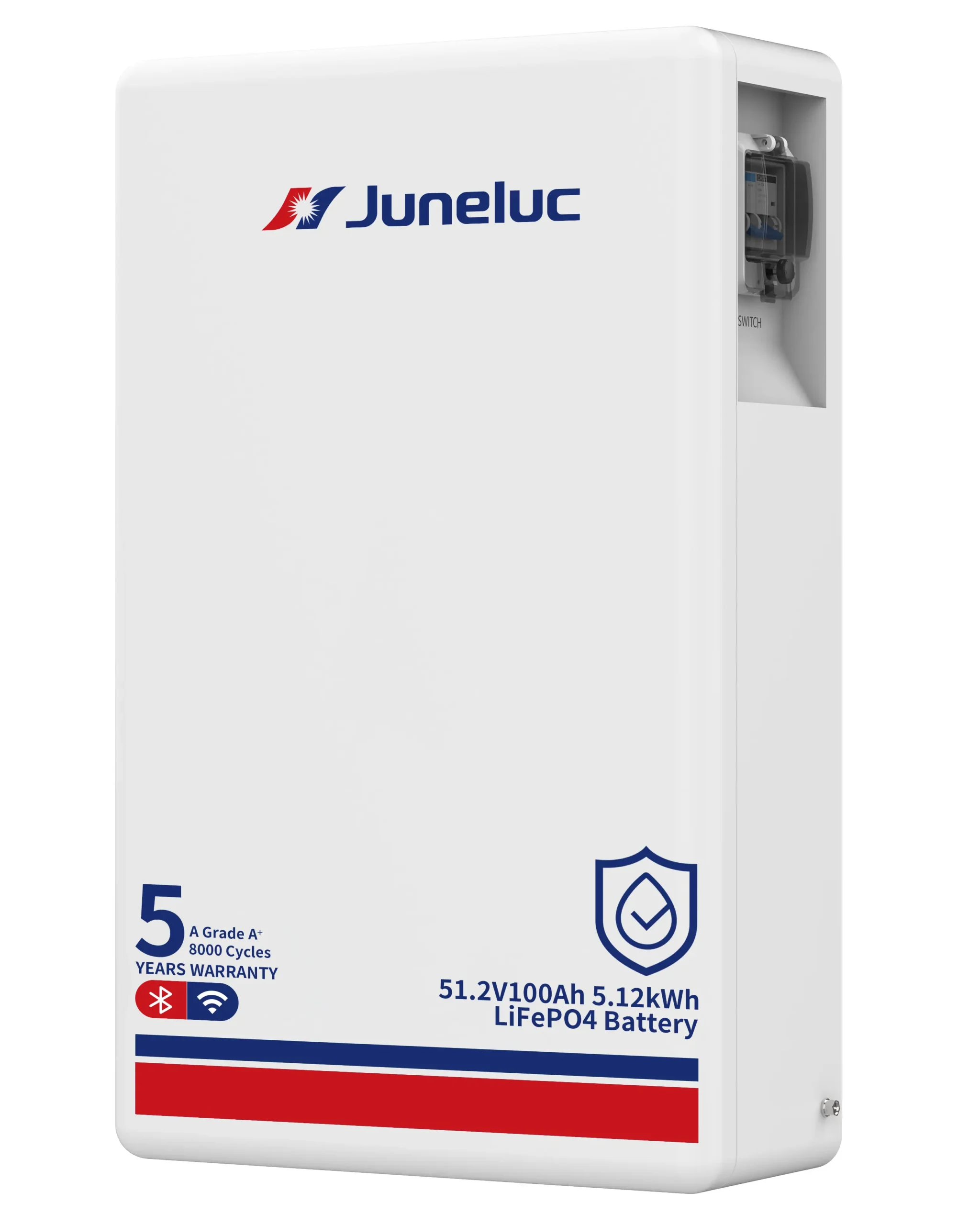

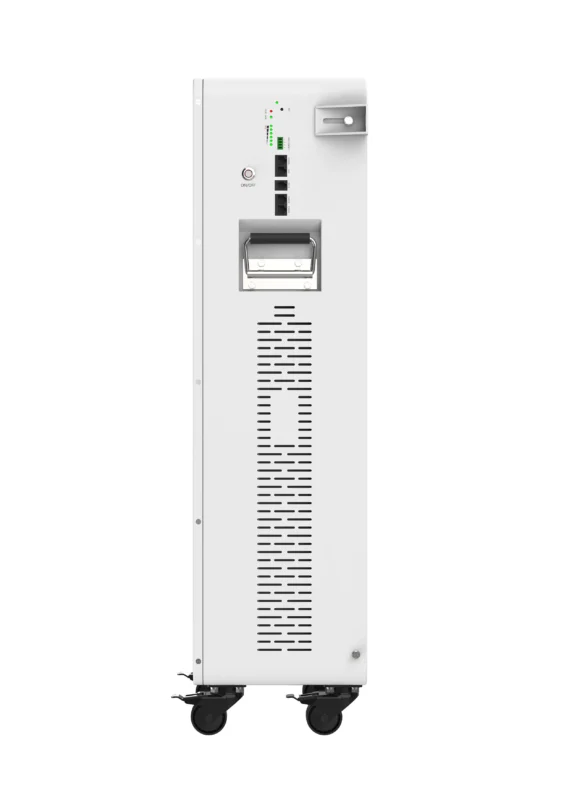

JLES-WM1-IP65 Wheel-Mounted LiFePO4 Solar Lithium Battery (5.12kWh)
JLES-WM1-IP65 Wheel-Mounted LiFePO4 Solar Lithium Battery (5.12kWh)
The JLES-WM1-IP65 is a high-performance 5.12kWh LiFePO4 energy storage system featuring a rugged IP65-rated enclosure for indoor and outdoor versatility. Designed for safety and longevity, it provides reliable backup power with over 6,000 cycles and more than 10 years of design life.
Product Description
| Standard | JLES-512100 |
|---|---|
| Rated Voltage (V) | 51.2V |
| Rated Capacity (Ah) | 100Ah |
| Rated Energy (kWh) | 5.12kWh |
| Output Voltage Range (V) | 43.2V-58.4V |
| Charging Voltage | 57.6-58.4V |
| Cut-off Voltage | 43.2V |
| Max Charging Current | 100A |
| Recommended Charging Current | 50A |
| Max Discharging Current | 100A |
| Efficiency (%) | >98% |
| Dimension L*W*H (mm) | 700*450*180 |
| Weight (Kg) | 53 |
| Humidity | 5%-95% Relative humidity |
| Charging Temperature | 0°C-55°C |
| Discharging Temperature | -20°C-60°C |
| Storage Temperature | -10°C-30°C |
| Cycle Life | >6000 times (0.2C, @25°C, 80%DOD) |
| Design Life | >10 years |
| IP Rating | IP65 |
Available Customization Options
Multiple Modes
Of Operation
Multiple Shell
Colors
Customized
Capacity
Customized
Logo
Built-in
Heater Option
Fire
Protection
Waterproof
WIFI
Bluetooth
> 6000 cycles
Application Scenarios

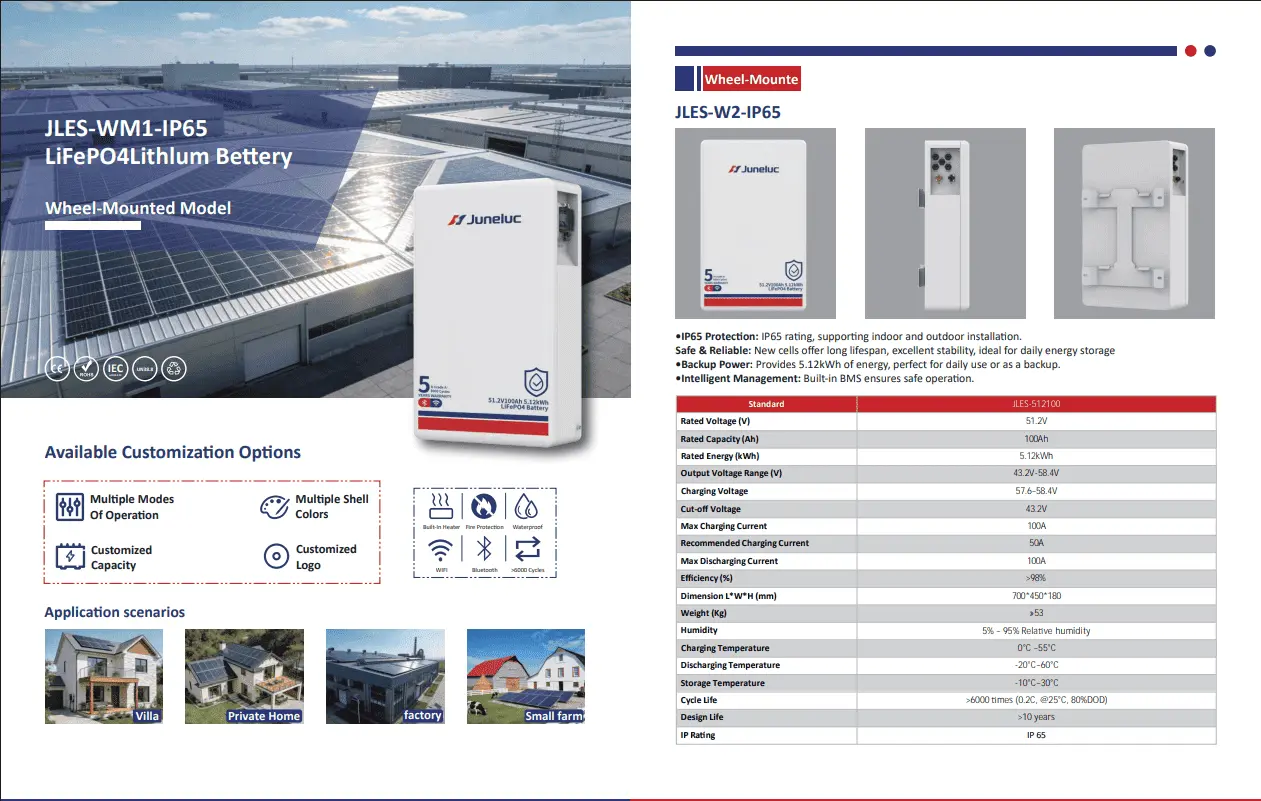

Download Catalogue
