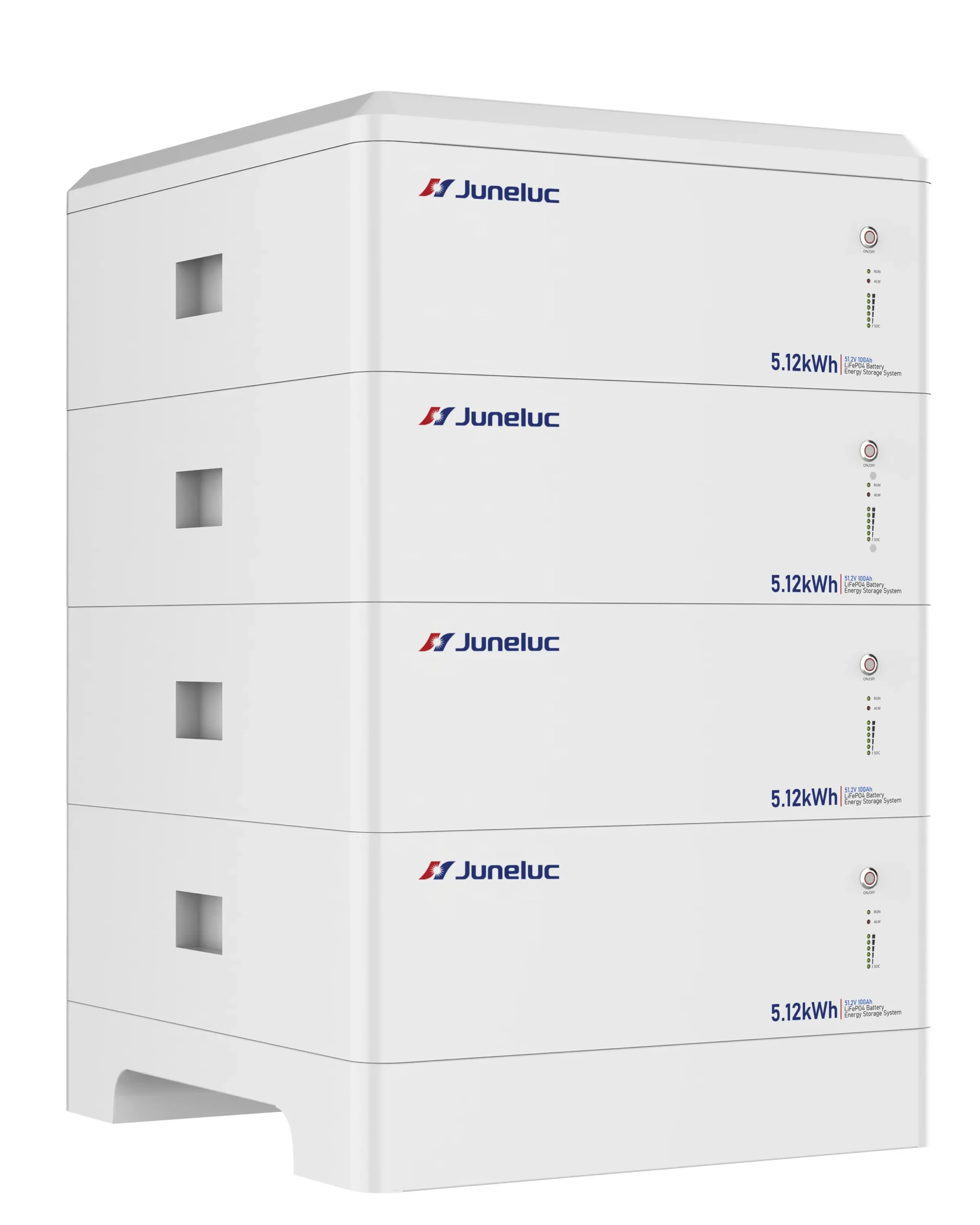

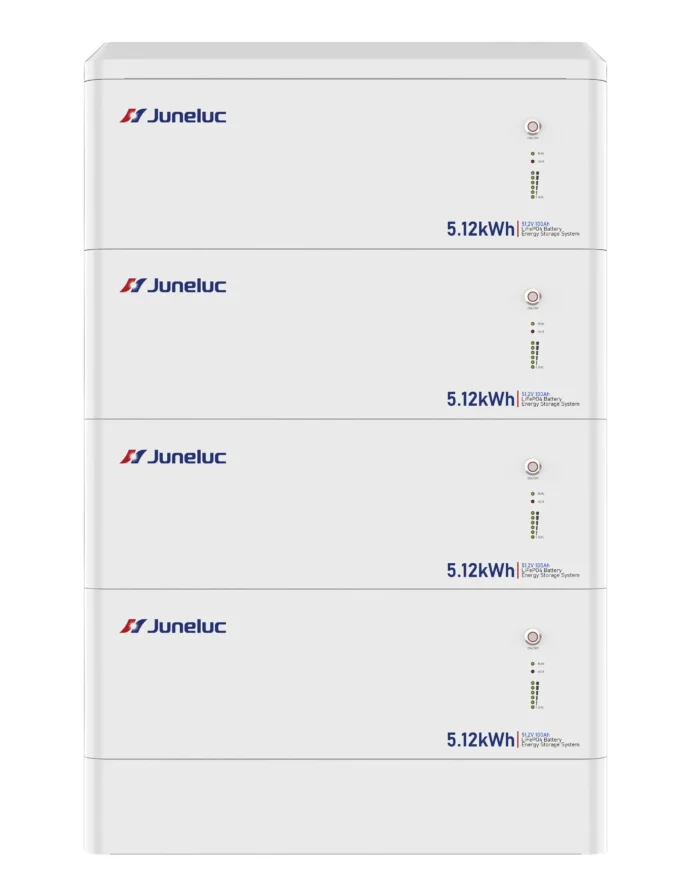

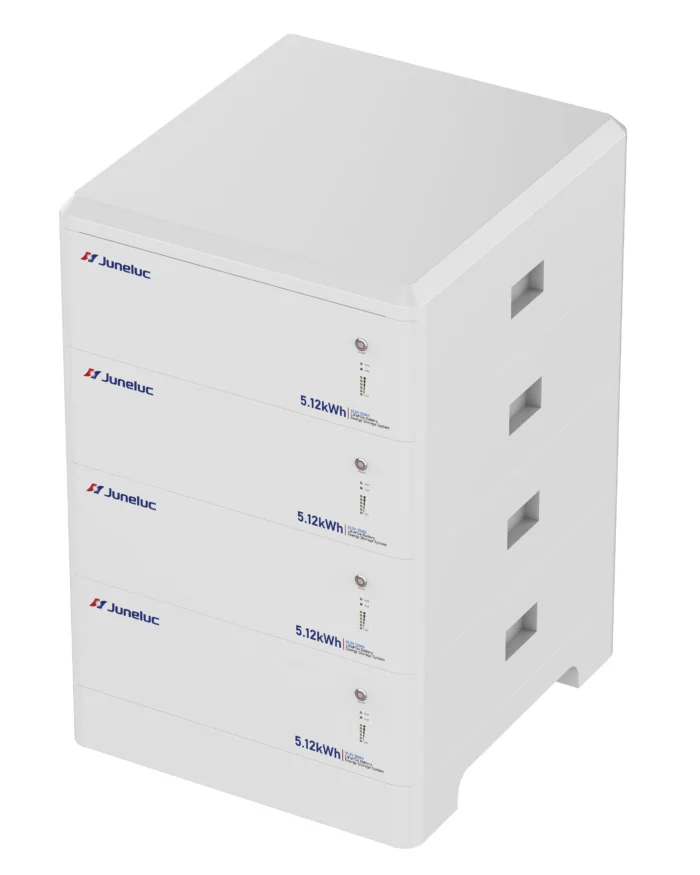

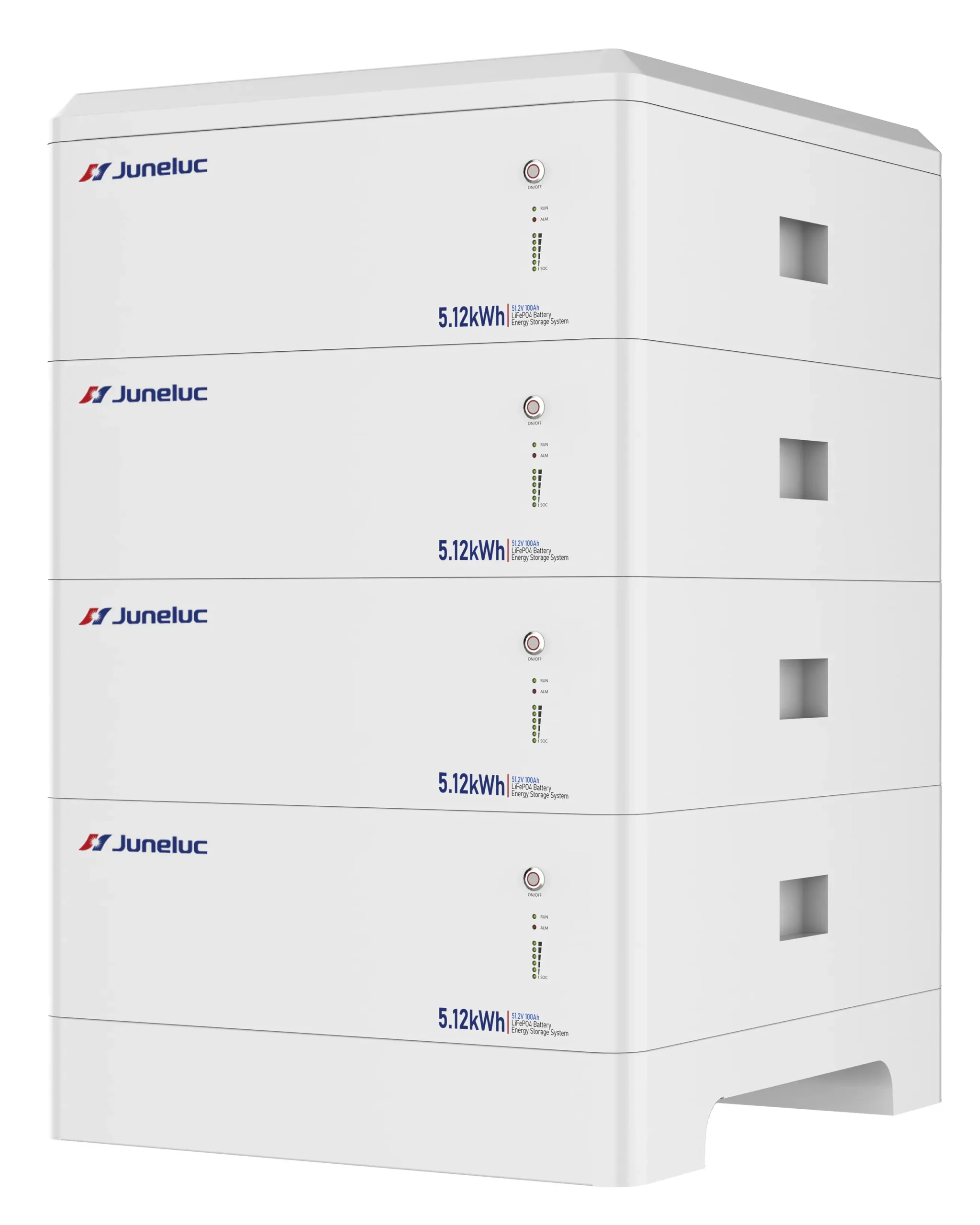

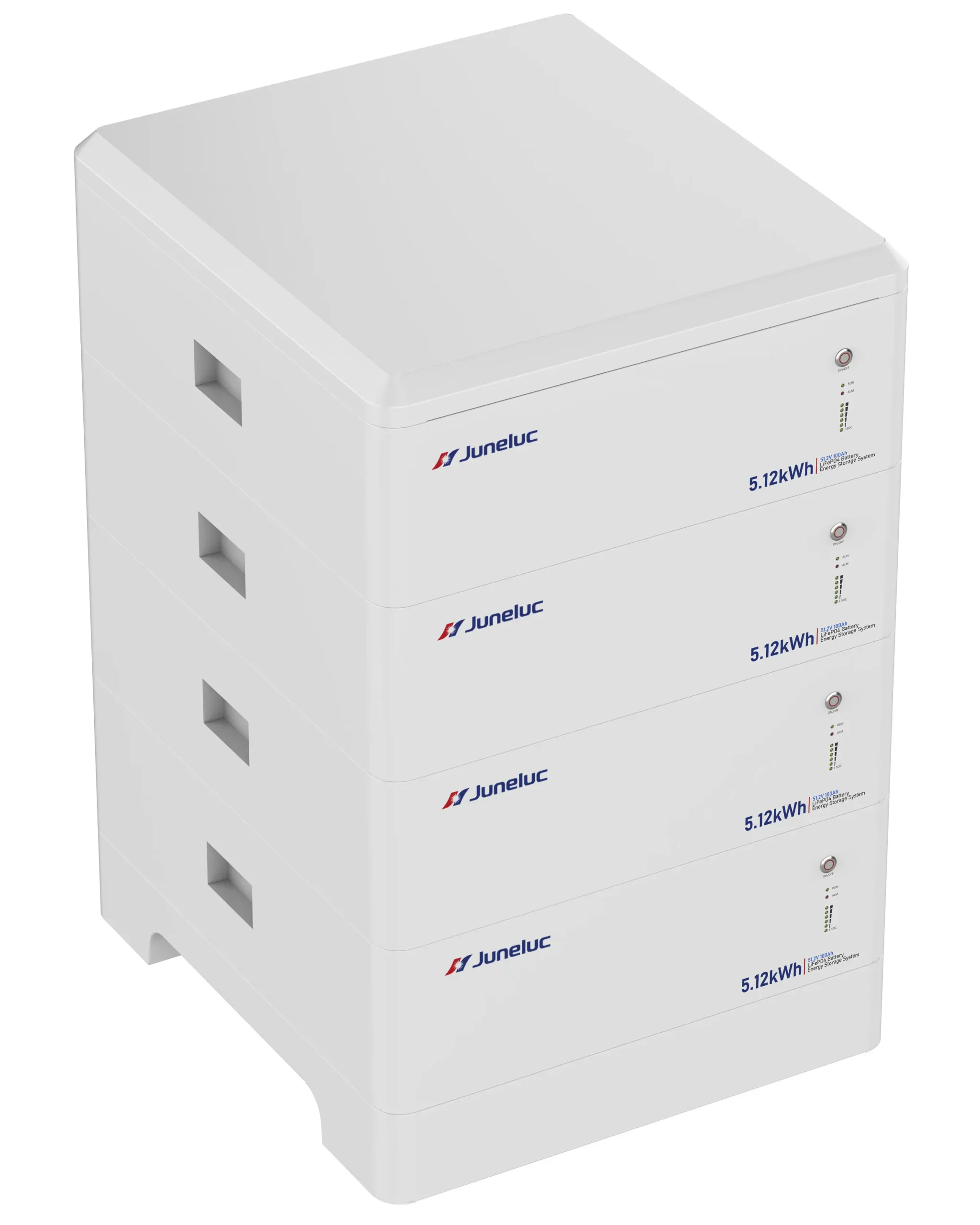

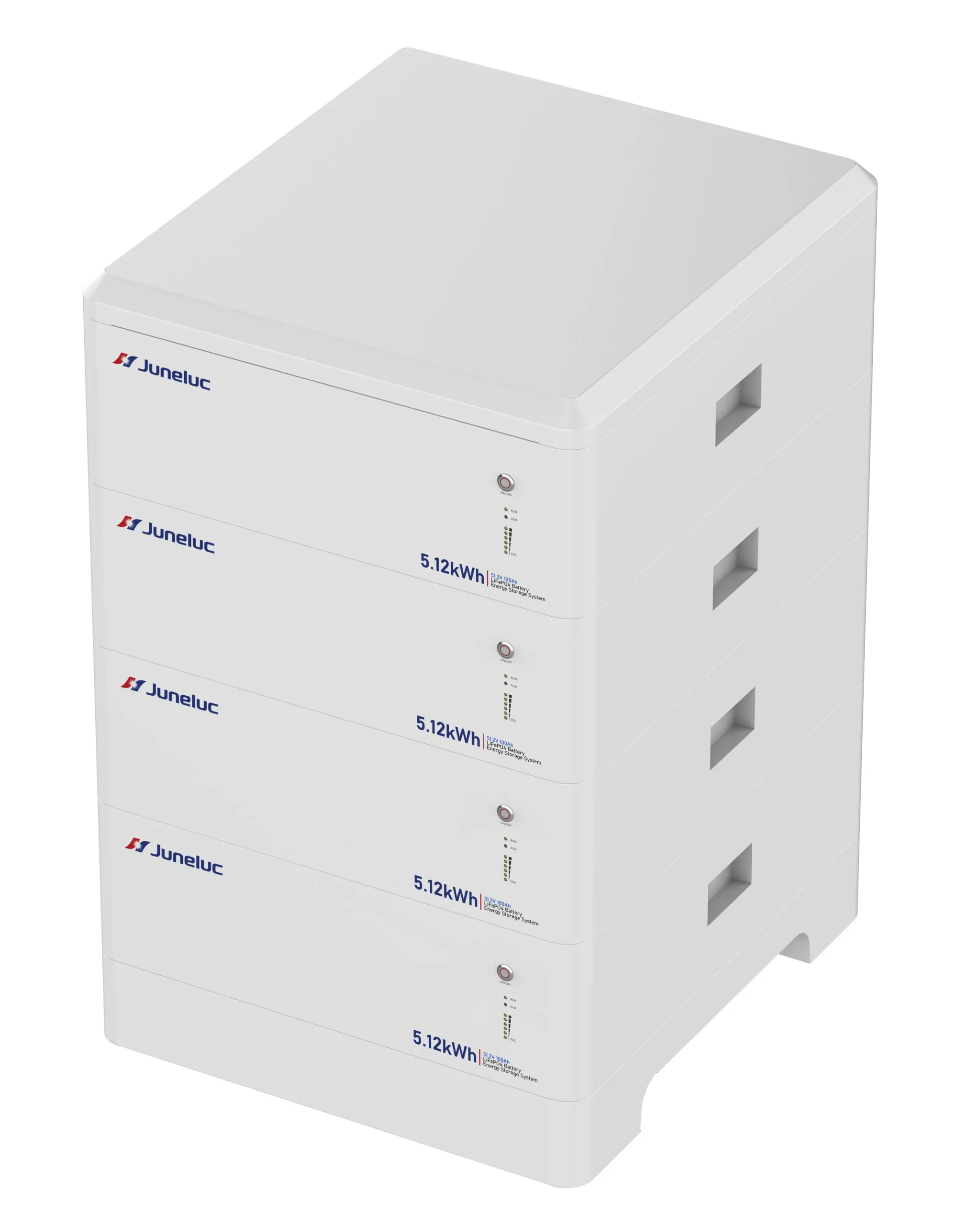

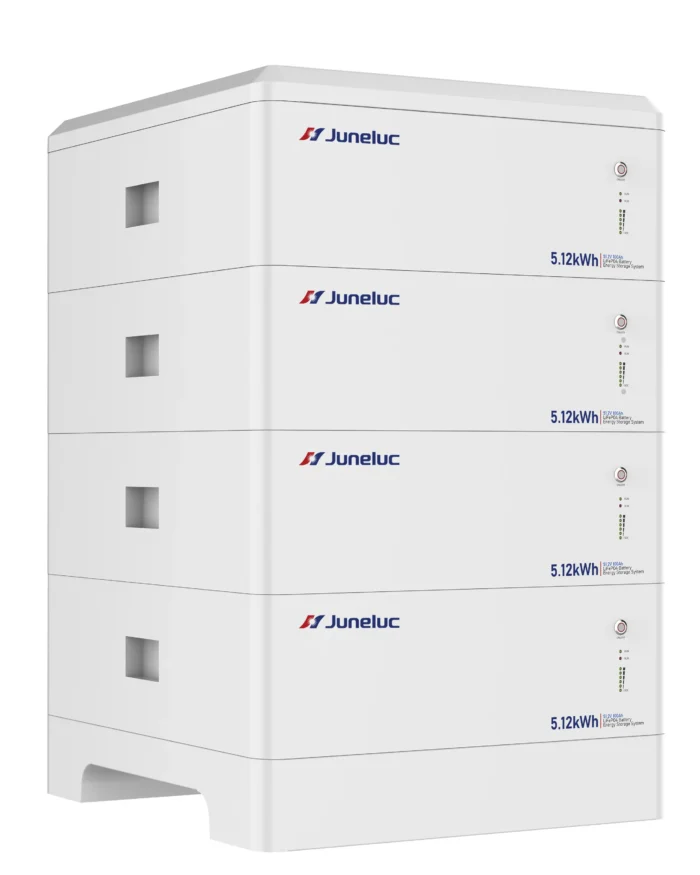

JLES-RM2 Wheel-Mounted LiFePO4 Solar Lithium Battery (5.12kWh*4)
JLES-RM2 Wheel-Mounted LiFePO4 Solar Lithium Battery (5.12kWh*4)
The JLES-RM2 is a space-saving, high-capacity LiFePO4 battery system designed for seamless integration into villa, private home, and small farm energy setups. Offering a long cycle life of over 6,000 cycles and an integrated BMS, it provides reliable energy storage with the flexibility of parallel expansion.
Product Description
| Standard | JLES-512100 |
|---|---|
| Rated Voltage (V) | 51.2V |
| Rated Capacity (Ah) | 100Ah |
| Rated Energy (kWh) | 5.12kWh |
| Output Voltage Range (V) | 43.2V-58.4V |
| Charging Voltage | 57.6-58.4V |
| Cut-off Voltage | 43.2V |
| Max Charging Current | 100A |
| Recommended Charging Current | 50A |
| Max Discharging Current | 100A |
| Efficiency (%) | >98% |
| Dimension L*W*H (mm) | 400*480*800 |
| Weight (Kg) | 215 |
| Humidity | 5%-95% Relative humidity |
| Charging Temperature | 0°C-55°C |
| Discharging Temperature | -20°C-60°C |
| Storage Temperature | -10°C-30°C |
| Cycle Life | >6000 times (0.2C, @25°C, 80%DOD) |
| Design Life | >10 years |
| Warranty | 5 years |
Available Customization Options
Touchable Screen
Multiple Shell Colors
Customized Capacity
Customized Logo
Application Scenarios

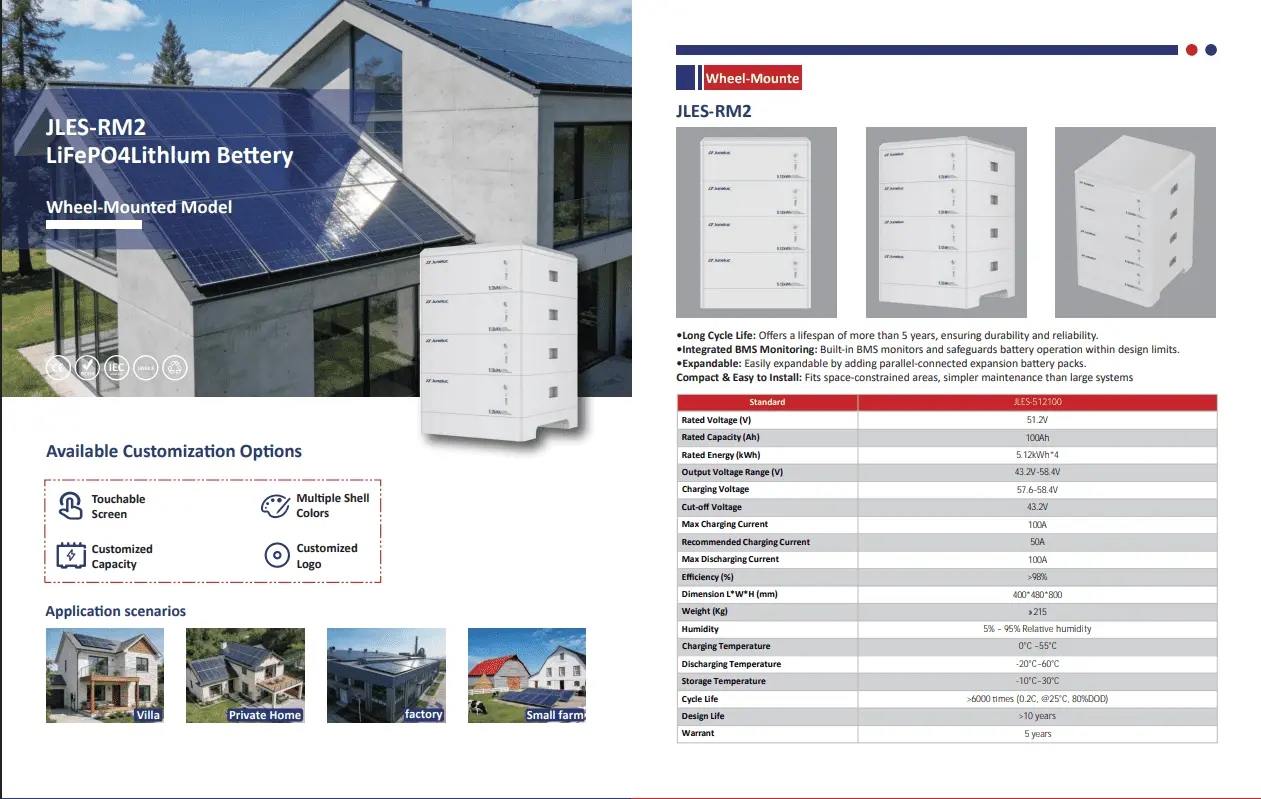

Download Catalogue
