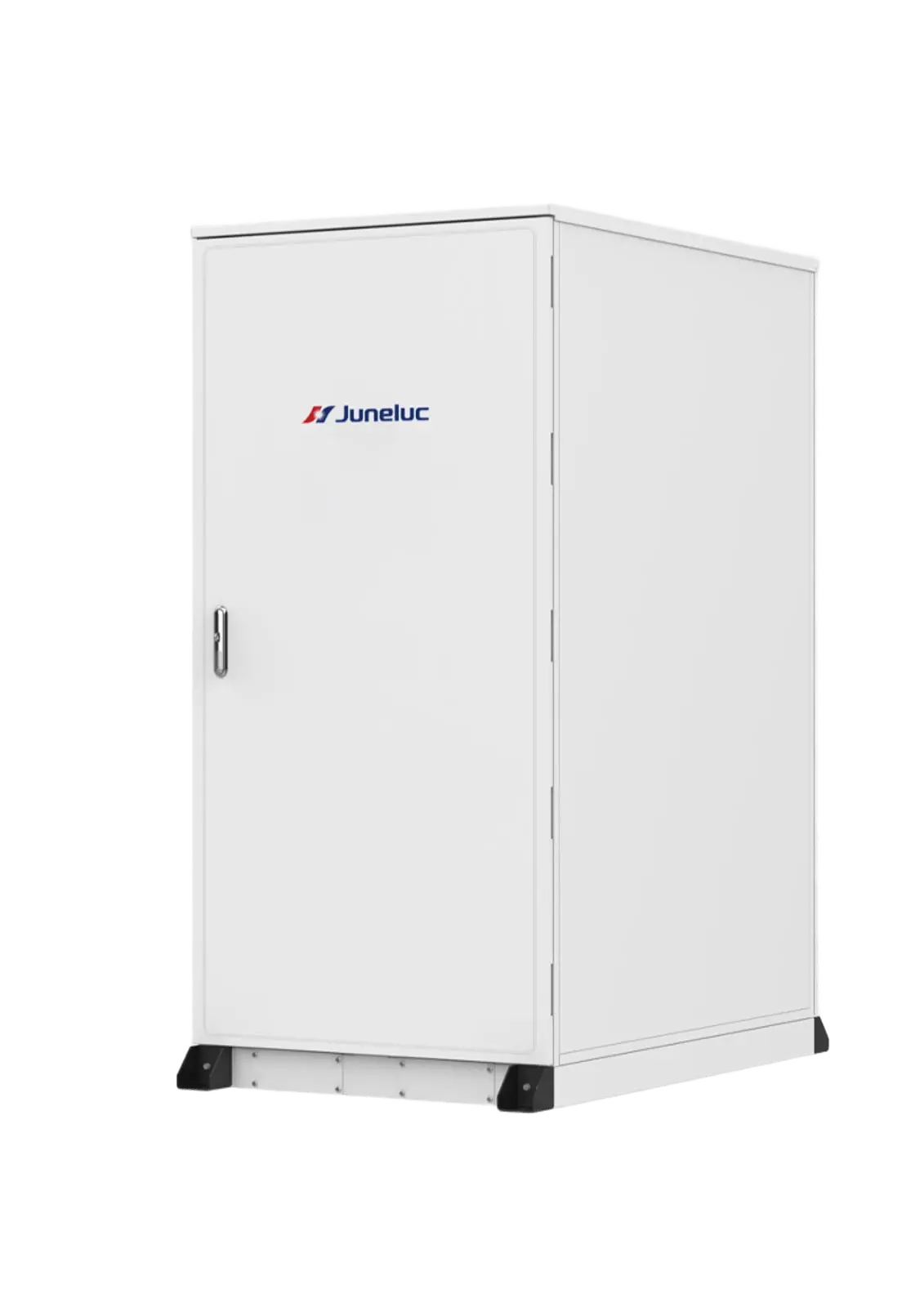

JLCI-HVC9 (LFP-768V280Ah) Commercial ESS Solutions
JLCI-HVC9 (LFP-768V280Ah) Commercial ESS Solutions
The JLCI-HVC9 (LFP-768V280Ah) is a high-power, high-capacity commercial energy storage solution designed for large-scale industrial and commercial applications. Featuring a robust 768V rated voltage and a modular 215.04kWh capacity, this system offers scalable energy management, integrated safety protections, and smart remote monitoring for high-powered industry needs.
Product Description
| SYSTEM PARAMETERS | |
|---|---|
| Battery Module Type | 51.2V |
| Battery Module Number | 15 |
| Battery Module Dimension | 440 * 760 * 230mm |
| Battery Capacity | 280Ah |
| Standard Charging Voltage Range | 55.2V-56V |
| Cut-off Voltage | 44.8V |
| Battery Max Charge Current | 200A |
| Battery Max Discharge Current | 200A |
| SYSTEM PARAMETERS | |
| Communication Port | EMS: RS485, Battery: CAN or RS485 |
| DI/DO | DI 2 / DO 2 |
| Rated Voltage | 768V |
| Standard Charging Voltage Range | 828V-840V |
| Cut-off Voltage | 672V |
| Max Continuous Discharge Current | 200A |
| Max Charge Current | 200A |
| Operating Temperature Range | 0-55°C |
| Storage Temperature | -10°C-35°C |
| Humidity | 5-95% RH |
| Cooling | FAN |
| Inverter Certificate | CE, IEC62019, IEC62477, IEC6100, EN50549 |
| CABINET | |
| Cooling | Air conditioner |
| System Weight | ≈1900kg |
| Dimension | Approx 1450 * 1200 * 2230mm |
| Inverter Installation | Built-in Cabinet |
Available Customization Options
High Capacity
Efficient Performance
Scalable Solution
Advanced Protection
Easy Installation
Smart Monitoring
Application Scenarios

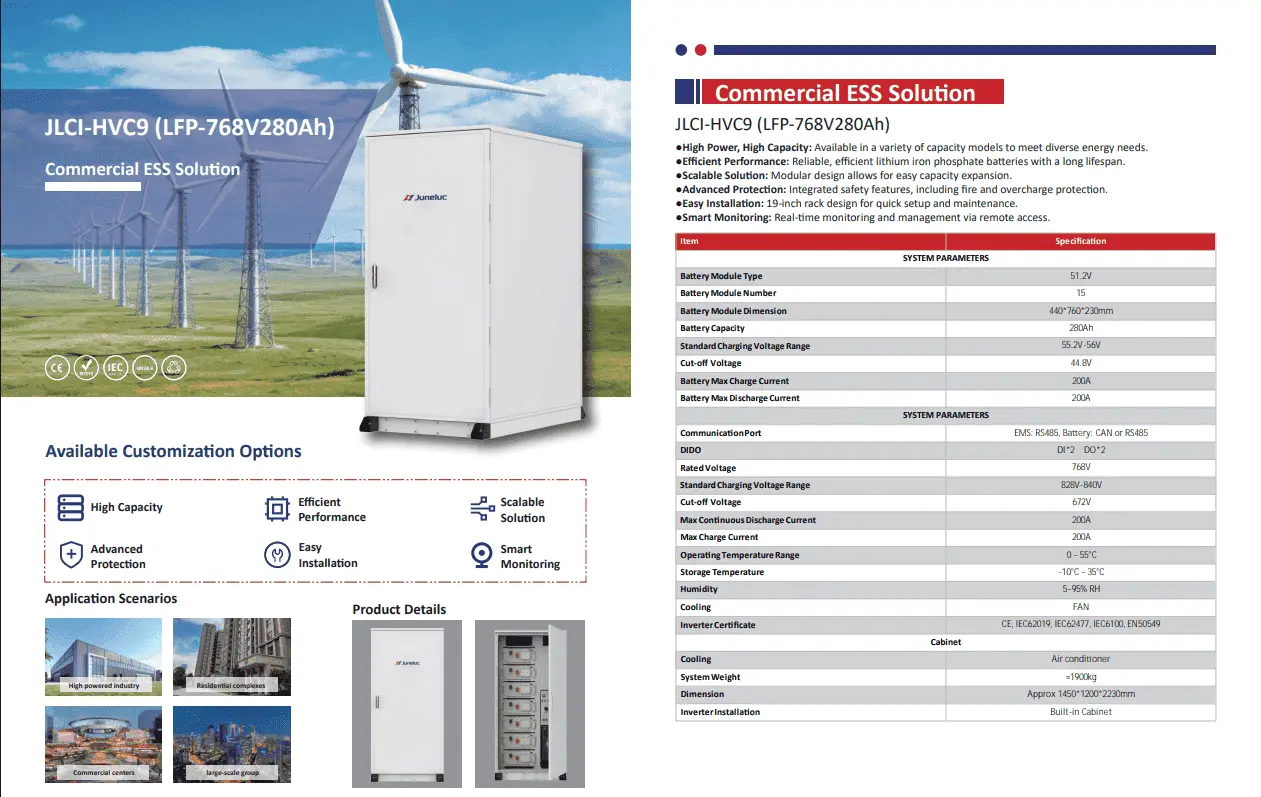

Download Catalogue
