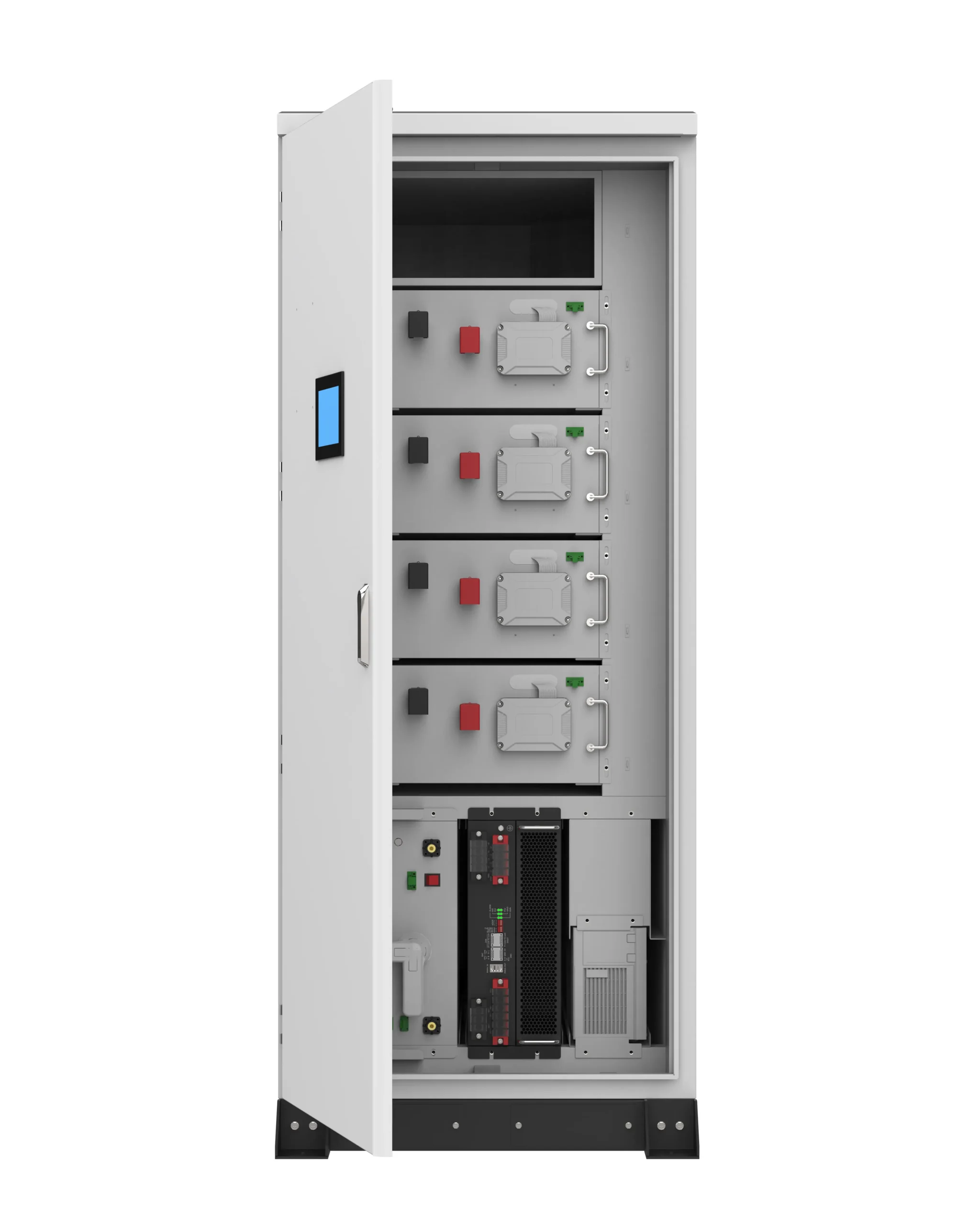

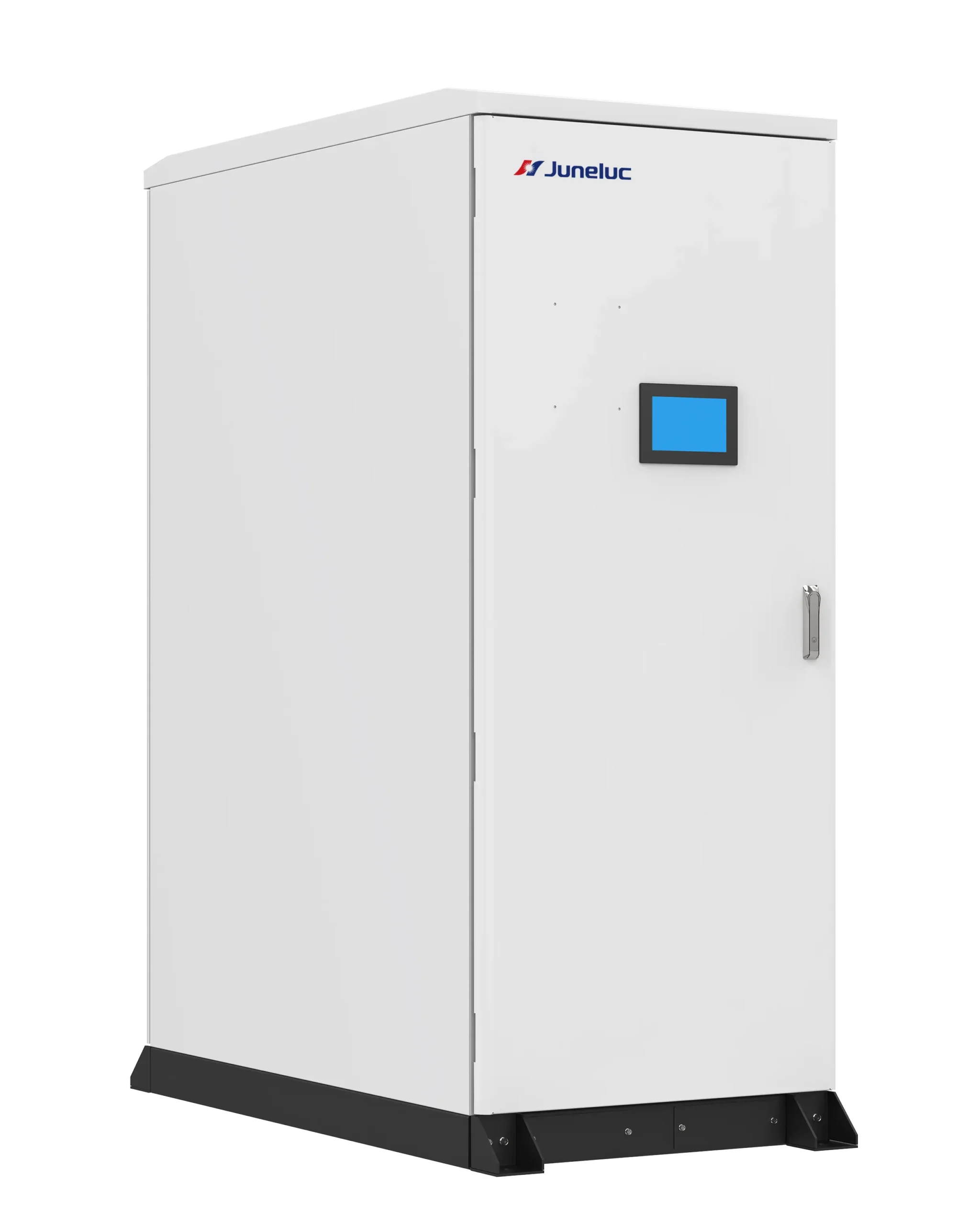

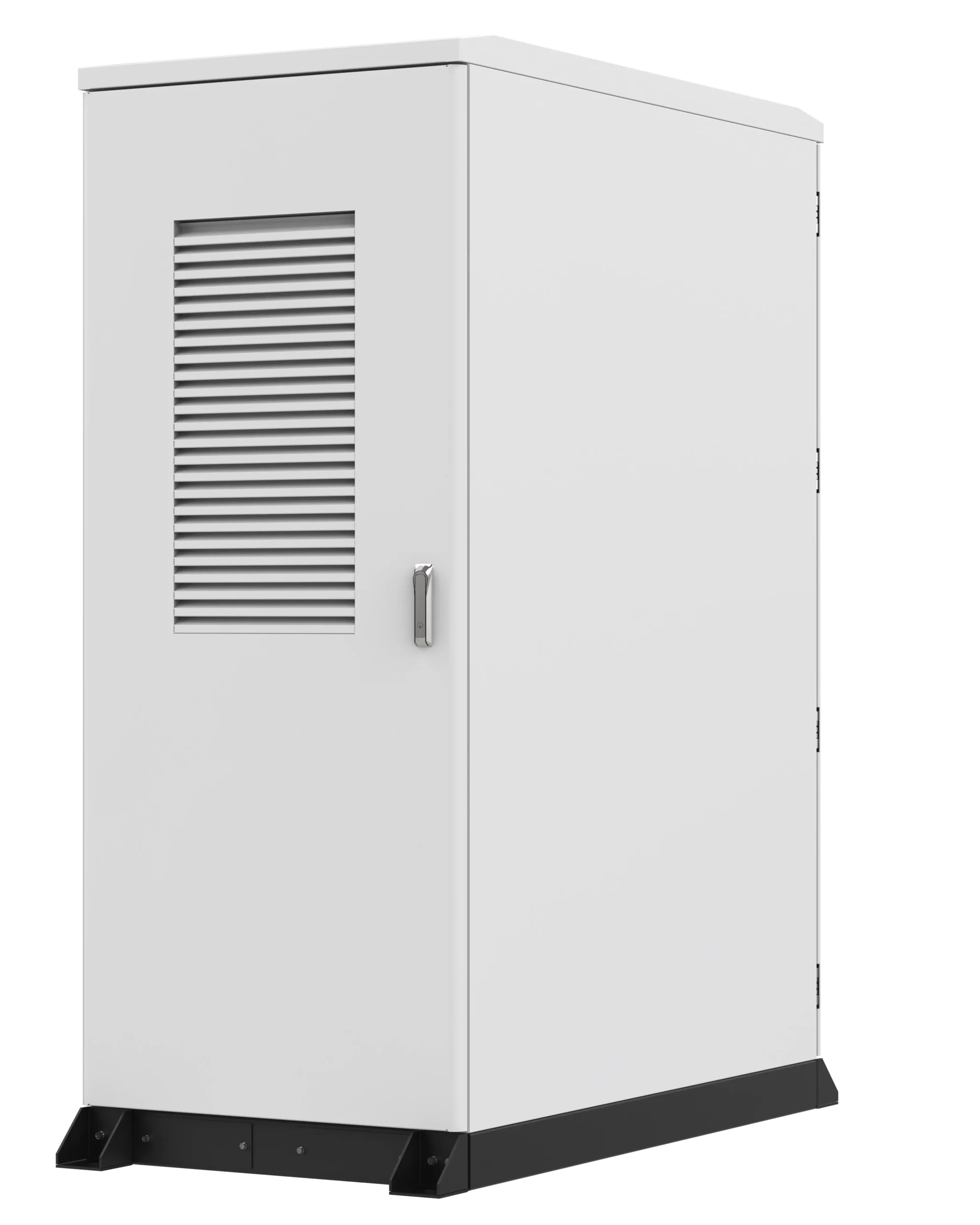

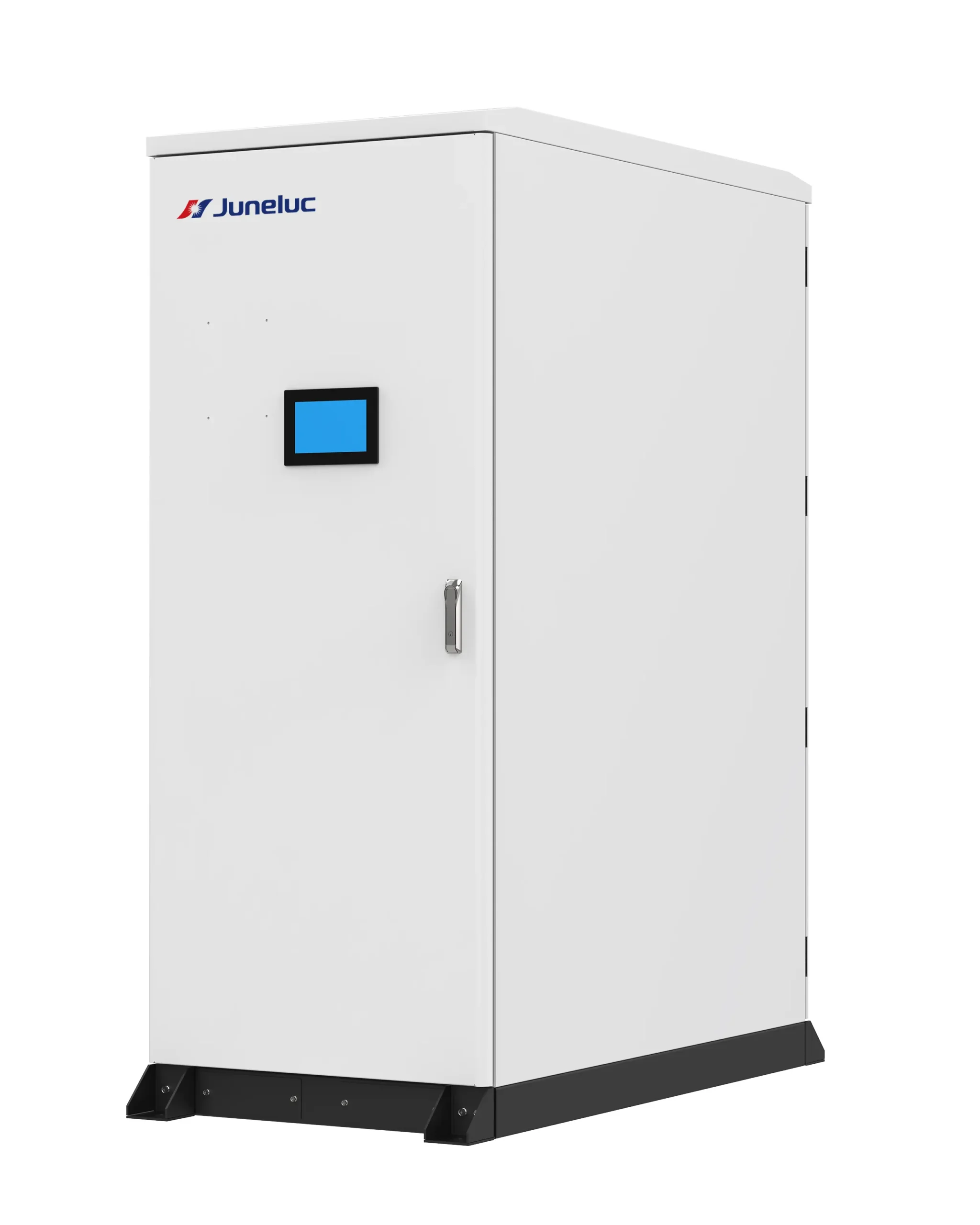

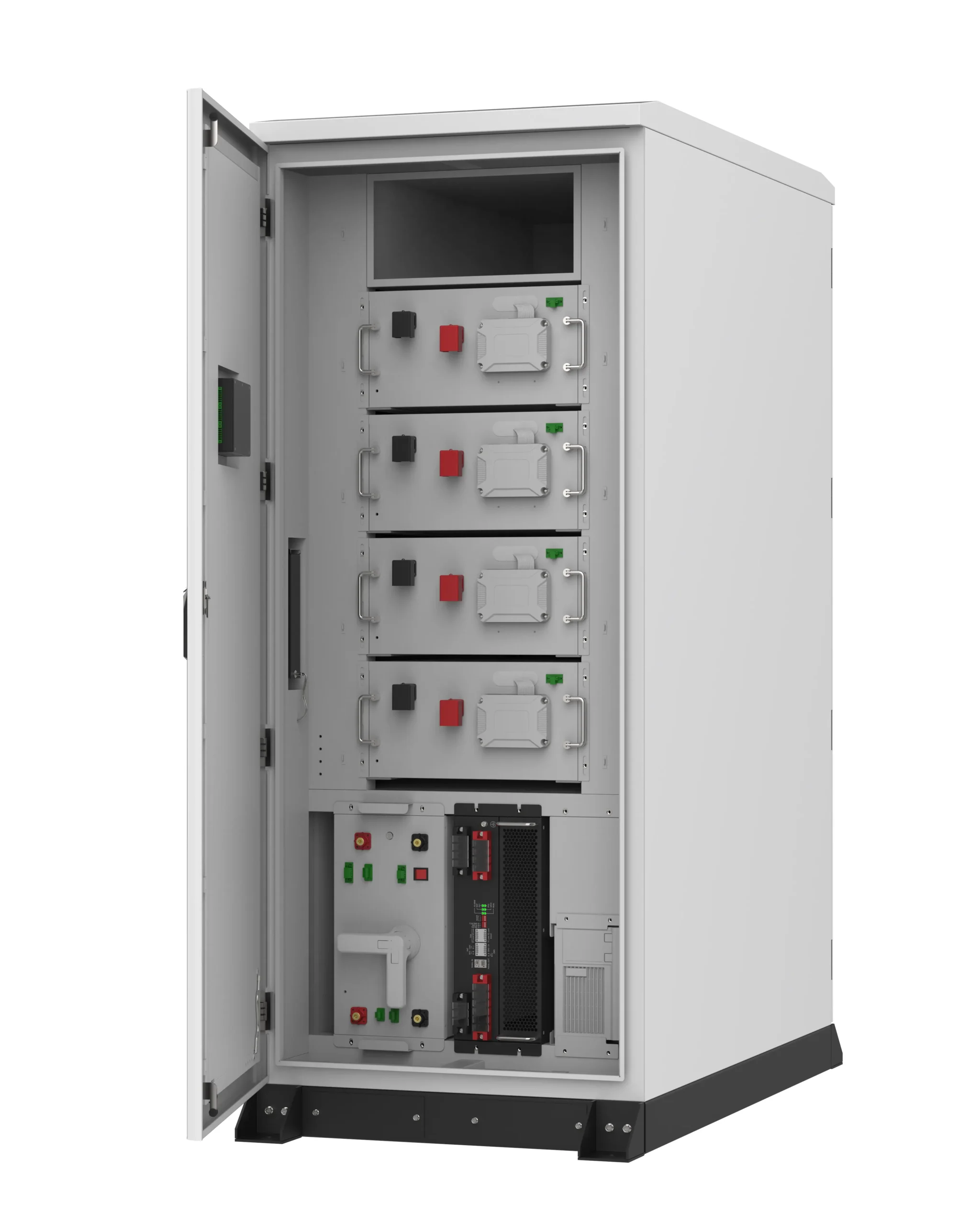

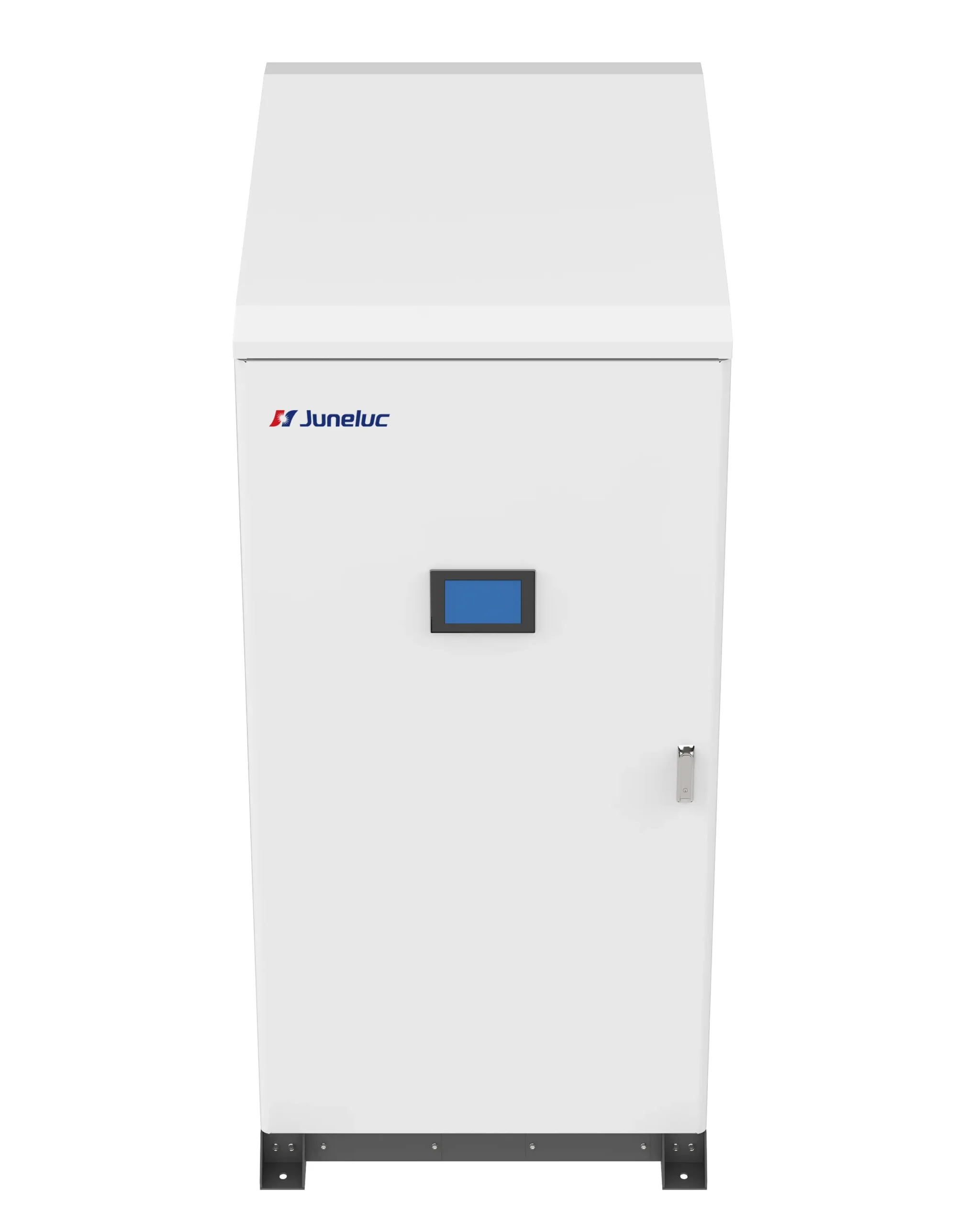

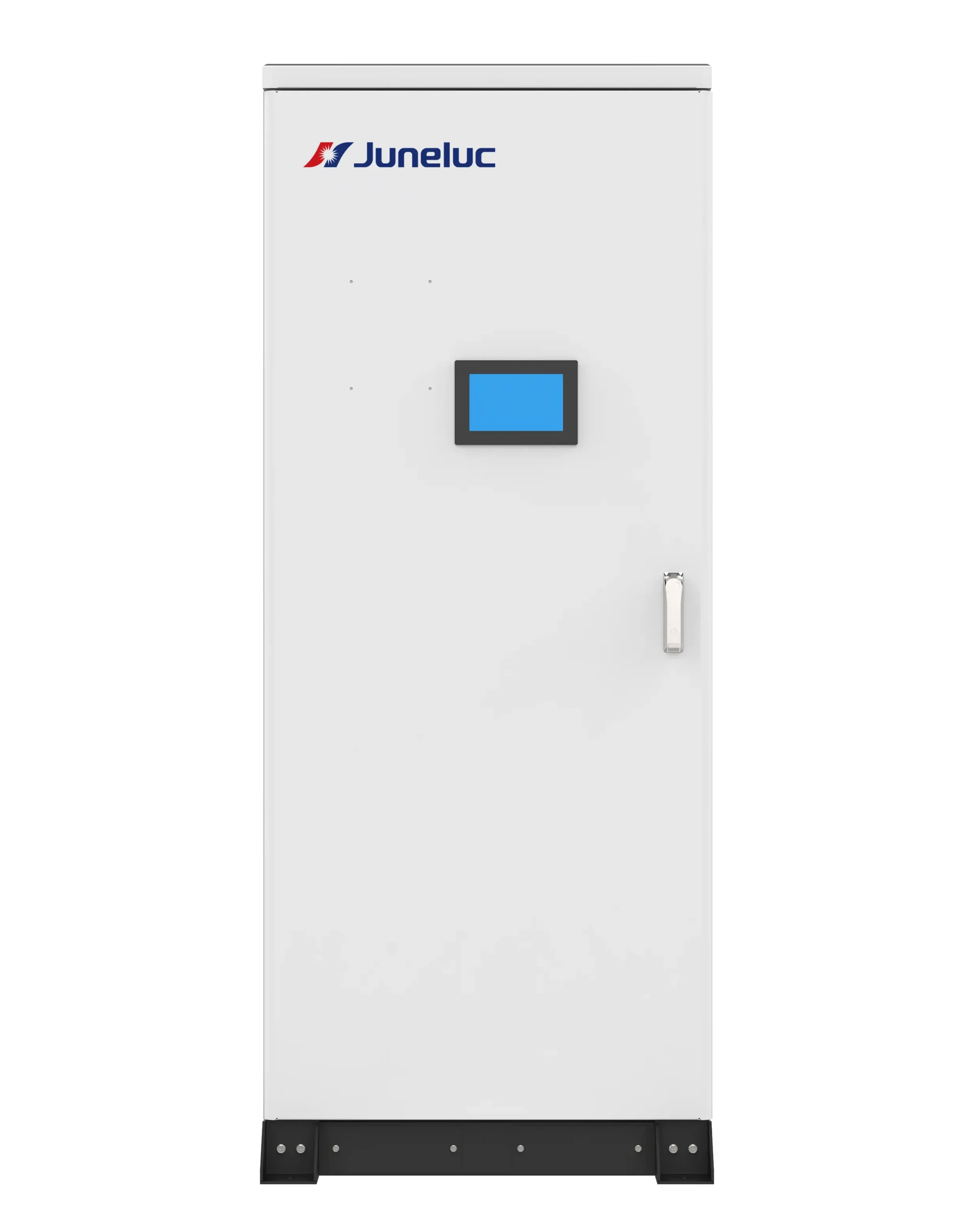

JLCI-HVC6 (LFP-30kW-50kWh) Commercial ESS Solutions

The JLCI-HVC6 (LFP-30kW-50kWh) is a comprehensive Commercial ESS Solution designed for efficient energy management in industrial and commercial sectors. This all-in-one system features a 30kW inverter and a 50kWh lithium iron phosphate (LiFePO4) battery capacity, providing high power and capacity in a scalable, modular design.

Add to wishlist

Product Description

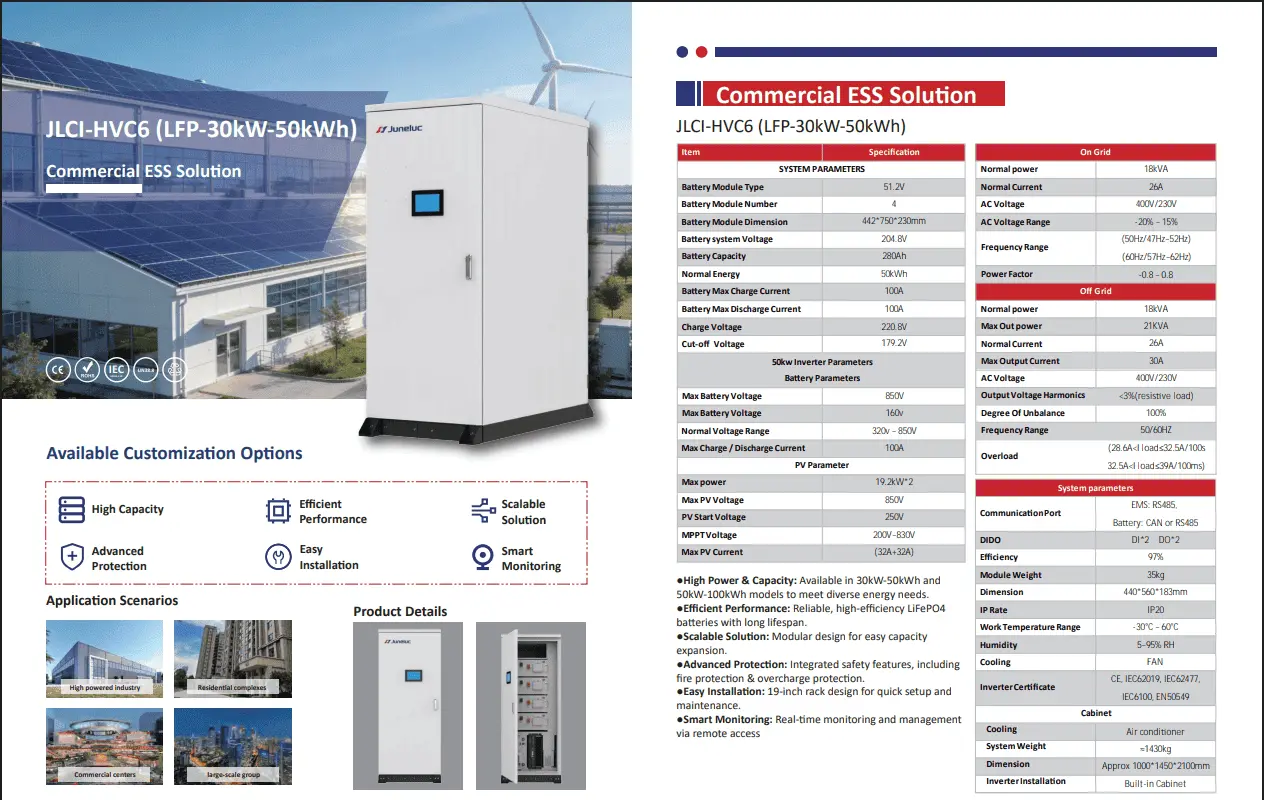

System Parameters
Battery Module Type	51.2V
Battery Module Number	4
Battery Module Dimension	442750230mm
Battery system Voltage	204.8V
Battery Capacity	280Ah
Normal Energy	50kWh
Battery Max Charge Current	100A
Battery Max Discharge Current	100A
Charge Voltage	220.8V
Cut-off Voltage	179.2V
50kw Inverter Parameters Battery Parameters
Max Battery Voltage	850V
Max Battery Voltage (Current)	160A
Normal Voltage Range	320V - 850V
Max Charge / Discharge Current	100A
PV Parameter
Max power	19.2kW*2
Max PV Voltage	850V
PV Start Voltage	250V
MPPT Voltage	200V-830V
Max PV Current	(32A+32A)
On Grid
Normal power	18kVA
Normal Current	26A
AC Voltage	400V/230V
AC Voltage Range	-20% ~ 15%
Frequency Range	(50Hz/47Hz-52Hz) (60Hz/57Hz-62Hz)
Power Factor	-0.8 ~ 0.8
Off Grid
Normal power	18kVA
Max Out power	21kVA
Normal Current	26A
Max Output Current	30A
AC Voltage	400V/230V
Output Voltage Harmonics	<3% (resistive load)
Degree Of Unbalance	100%
Frequency Range	50/60Hz
Overload	(28.6A < load ≤ 32.5A/100s) (32.5A < load ≤ 39A/100ms)
System parameters (General)
Communication Port	EMS: RS485, Battery: CAN or RS485
DIDO	DI2 DO2
Efficiency	97%
Module Weight	35kg
Dimension (Module)	440560183mm
IP Rate	IP20
Work Temperature Range	-30°C ~ 60°C
Humidity	5-95% RH
Cooling (Internal)	FAN
Inverter Certificate	CE, IEC62019, IEC62477, IEC6100, EN50549
Cabinet
Cooling	Air conditioner
System Weight	≈1430kg
Dimension (Cabinet)	Approx 100014502100mm
Inverter Installation	Built-in Cabinet
