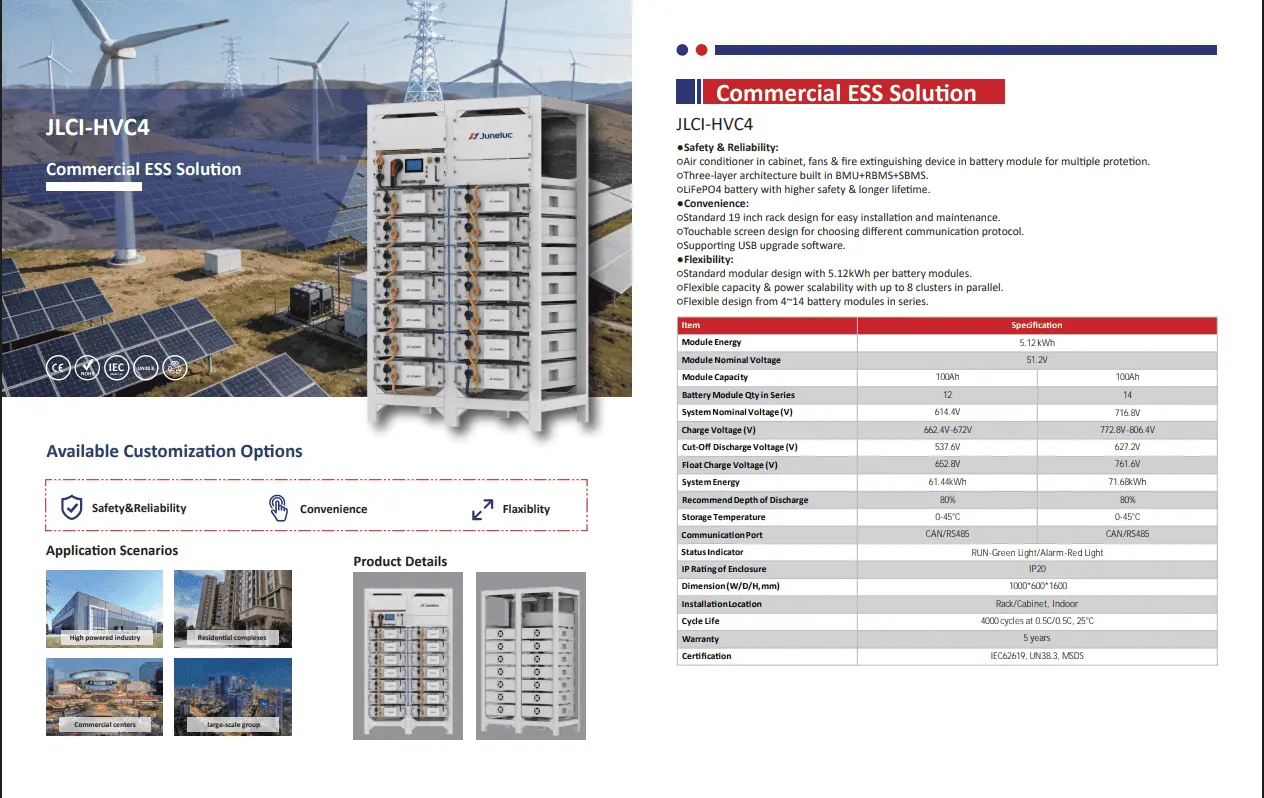

JLCI-HVC4 Commercial ESS Solutions

JLCI-HVC4 Commercial ESS Solutions

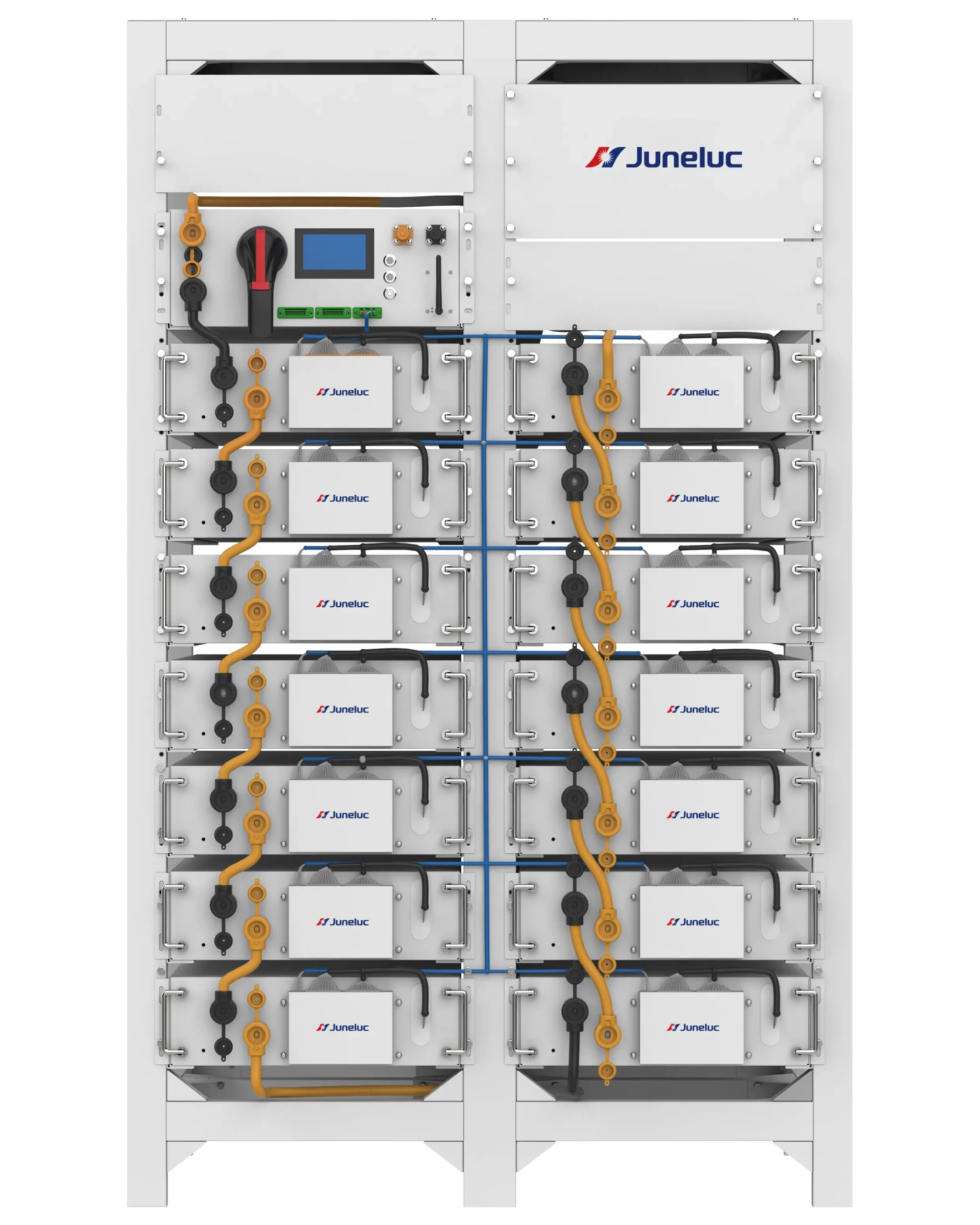

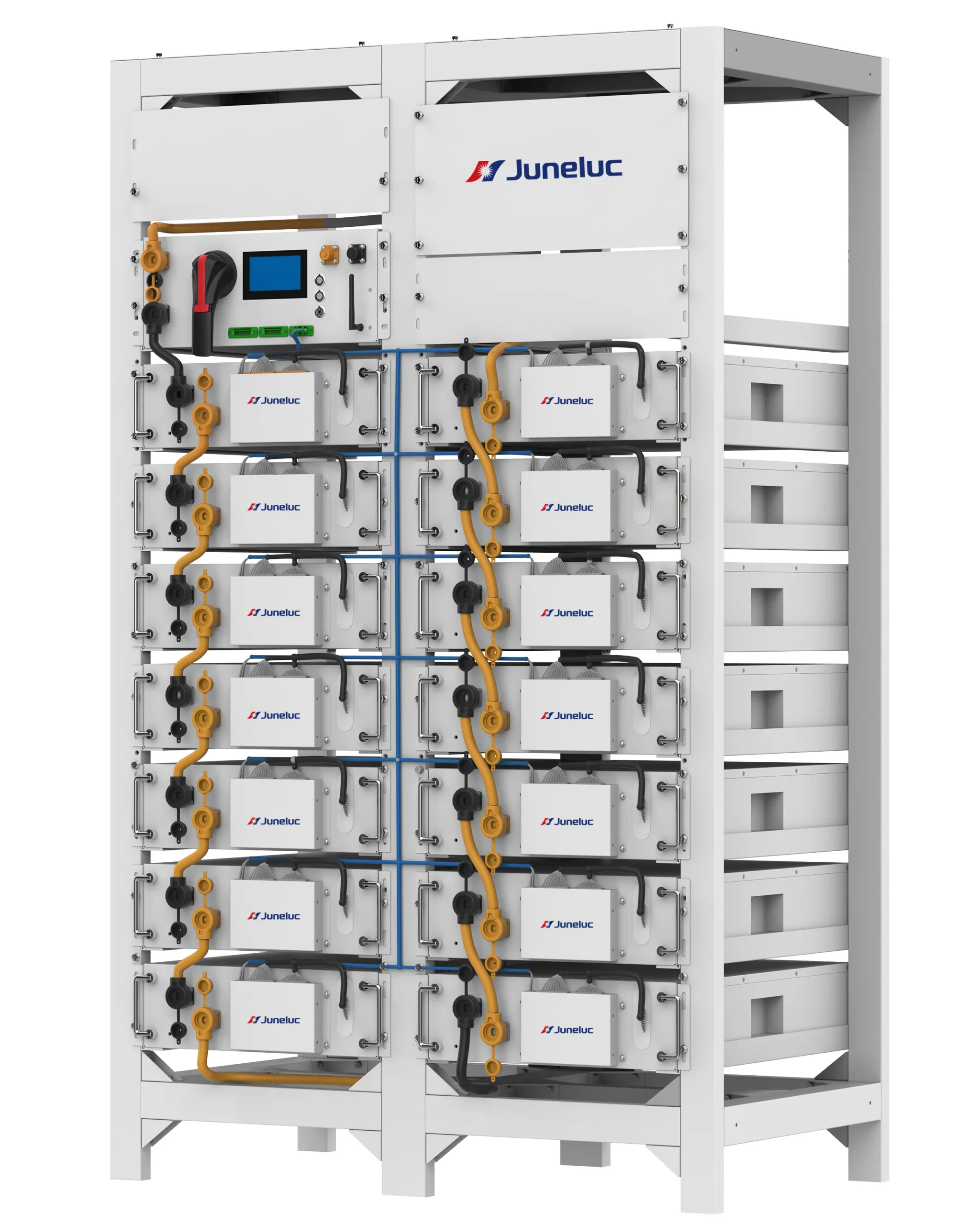

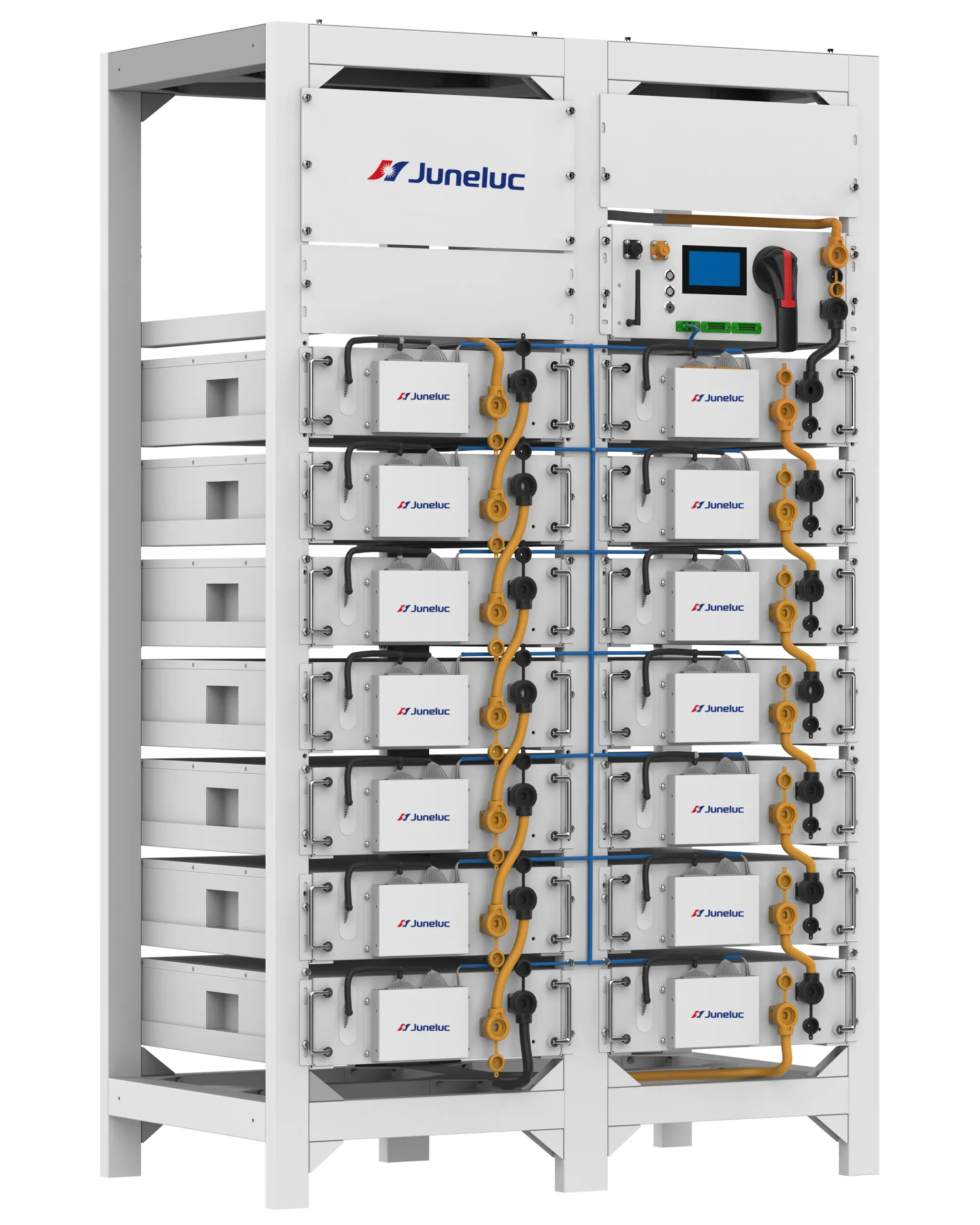

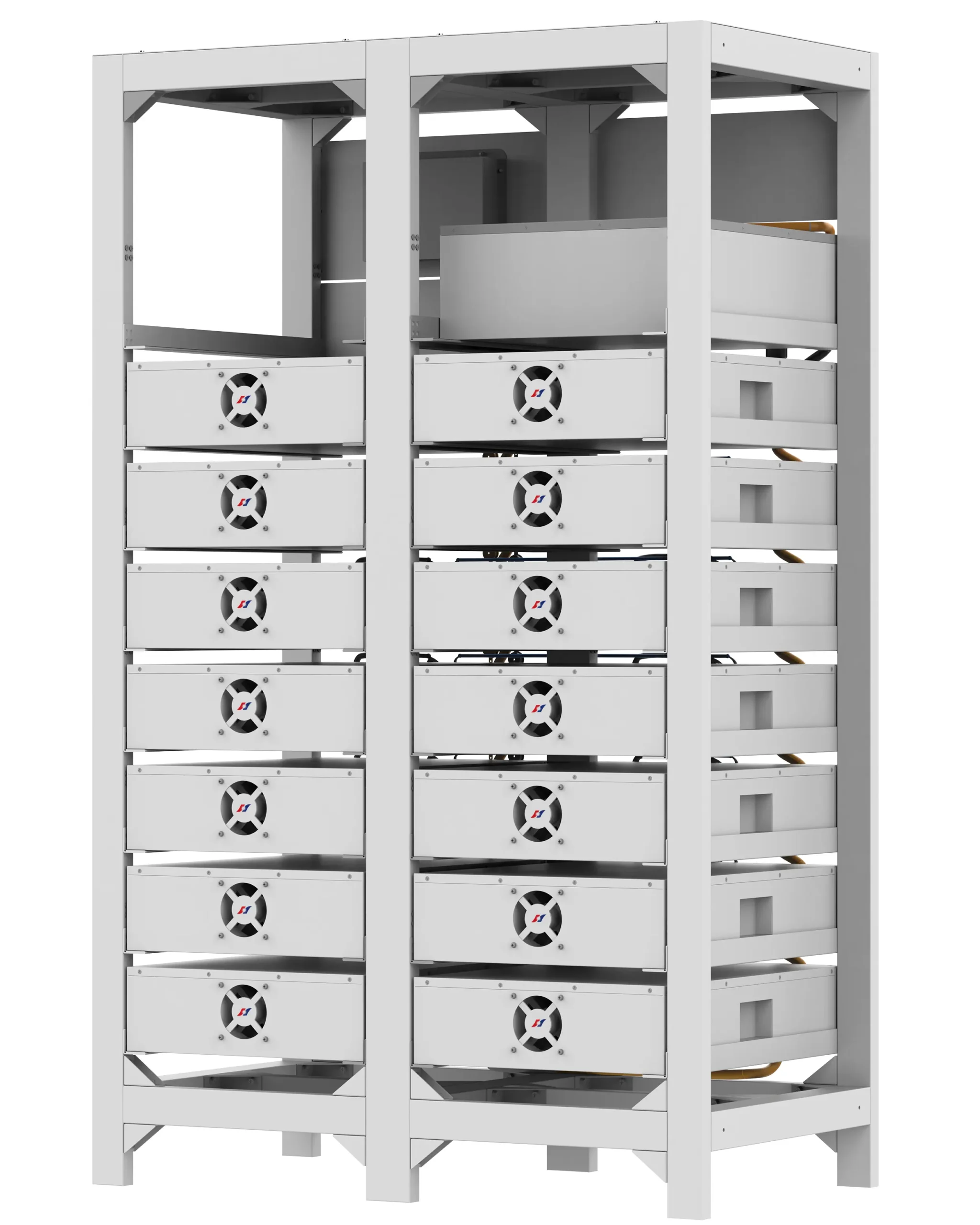

The JLCI-HVC4 is a high-safety, modular Commercial Energy Storage System (ESS) built on a three-layer architecture (BMU+RBMS+SBMS). It offers flexible capacity with a standard 19-inch rack design, making it a versatile and scalable choice for indoor industrial and commercial applications.

Product Description
ItemSpecification
Module Energy5.12 kWh
Module Nominal Voltage51.2V
Module Capacity100Ah100Ah
Battery Module Qty in Series1214
System Nominal Voltage (V)614.4V716.8V
Charge Voltage (V)662.4V-672V772.8V-806.4V
Cut-Off Discharge Voltage (V)537.6V627.2V
Float Charge Voltage (V)652.8V761.6V
System Energy61.44kWh71.68kWh
Recommend Depth of Discharge80%80%
Storage Temperature0-45°C0-45°C
Communication PortCAN/RS485CAN/RS485
Status IndicatorRUN-Green Light / Alarm-Red Light
IP Rating of EnclosureIP20
Dimension (W/D/H, mm)1000*600*1600
Installation LocationRack/Cabinet, Indoor
Cycle Life4000 cycles at 0.5C/0.5C, 25°C
Warranty5 years
CertificationIEC62619, UN38.3, MSDS

Available Customization Options
Safety and Reliability
Convenience
Flaxiblity
Application Scenarios
High Powered Industry
High Powered Industry
Residential Complex
Residential Complex
Commercial Centers
Commercial Centers
large scale group
large-scale group
