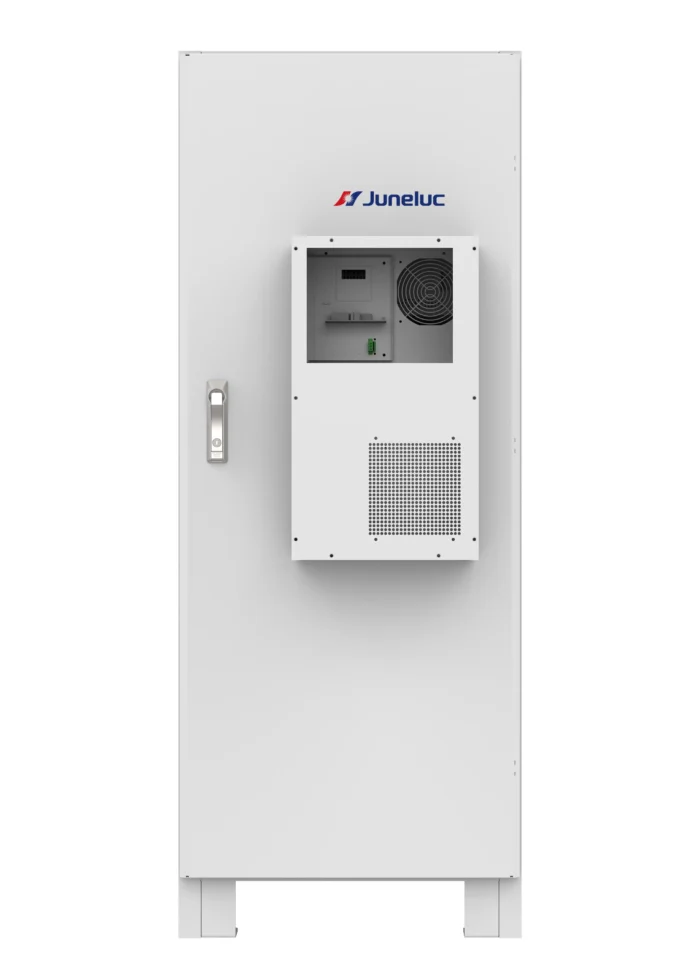

JLCI-HVC3 Commercial ESS Solutions - Image 2

JLCI-HVC3 Commercial ESS Solutions - Image 3

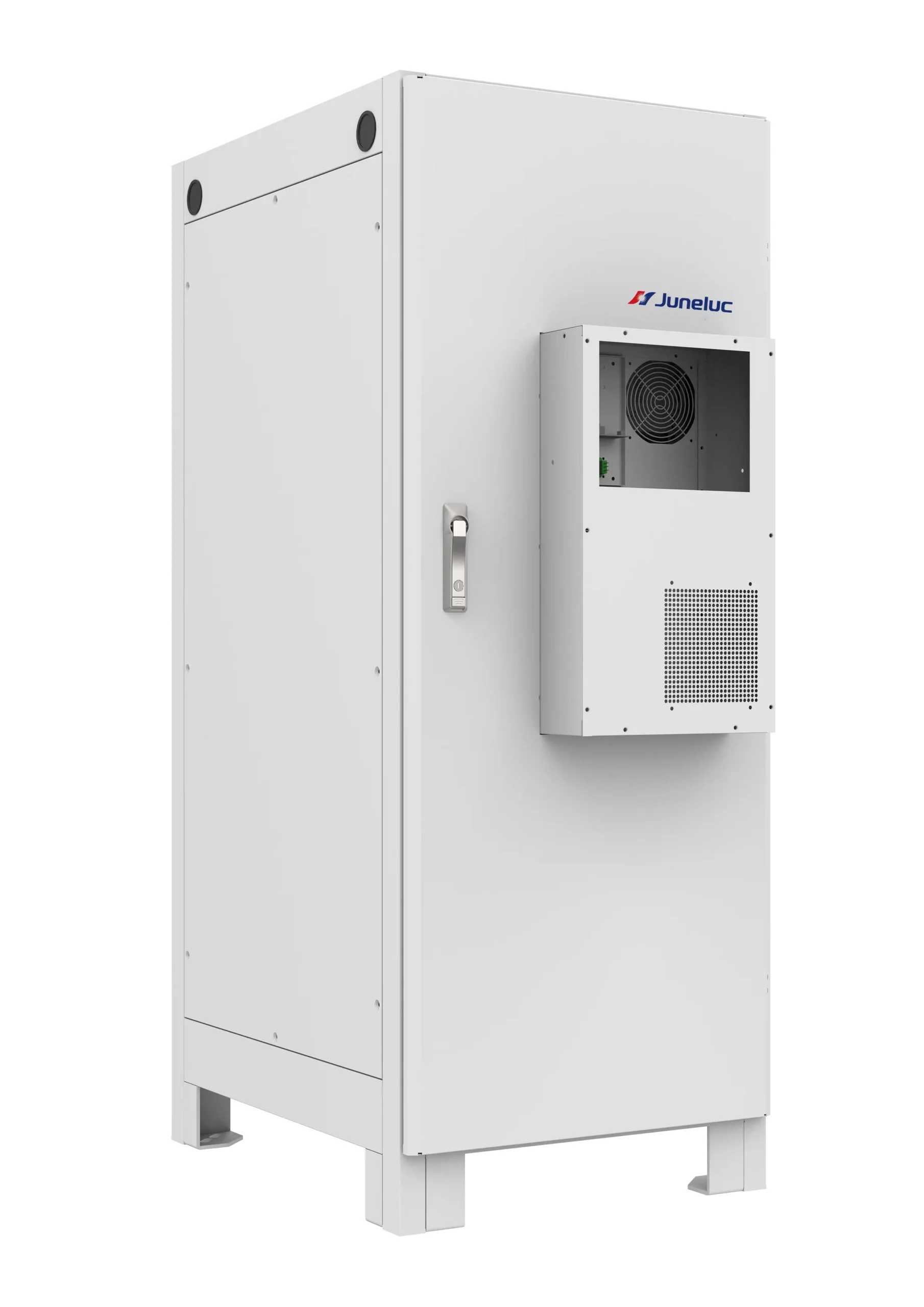

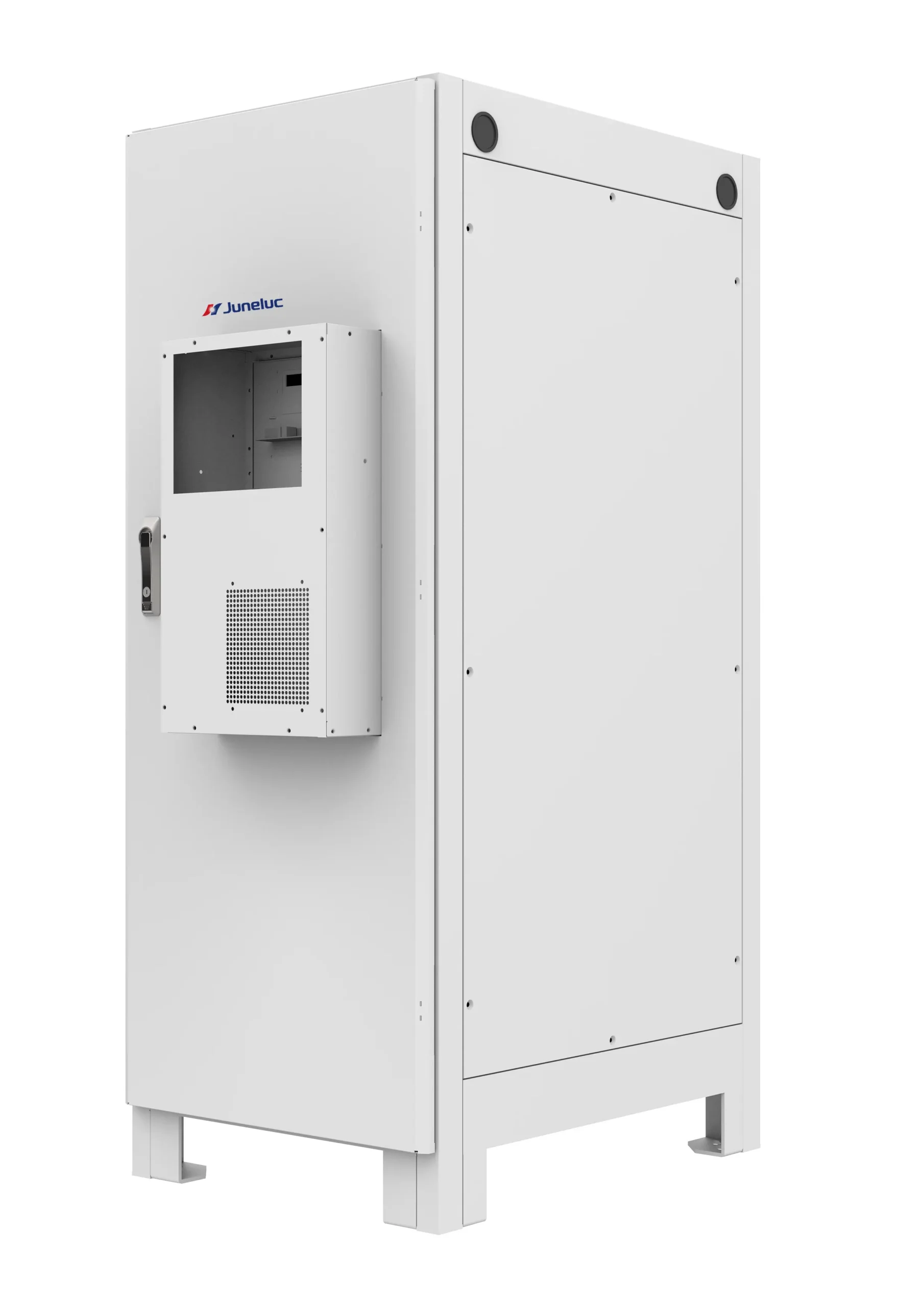

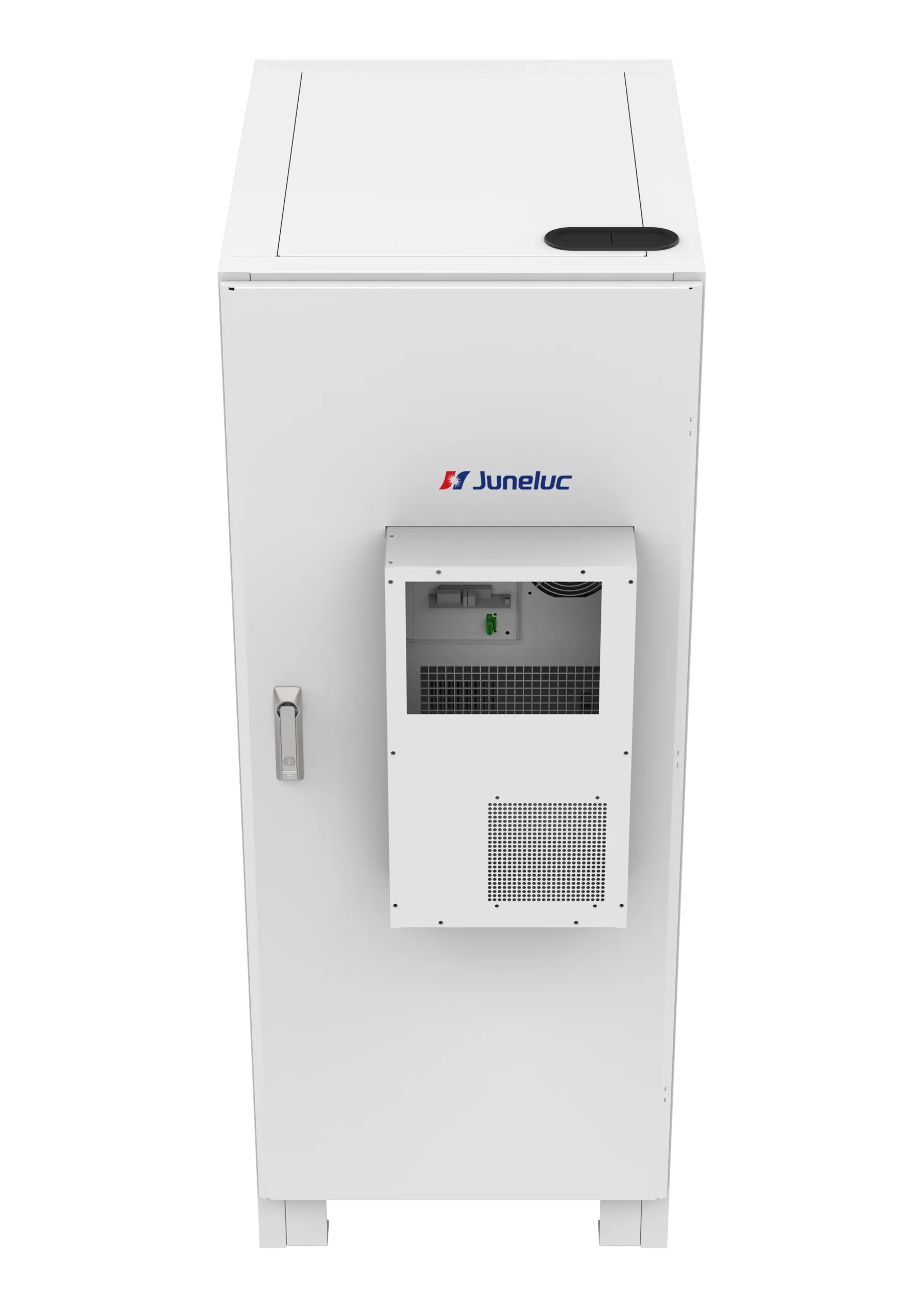

JLCI-HVC3 Commercial ESS Solutions

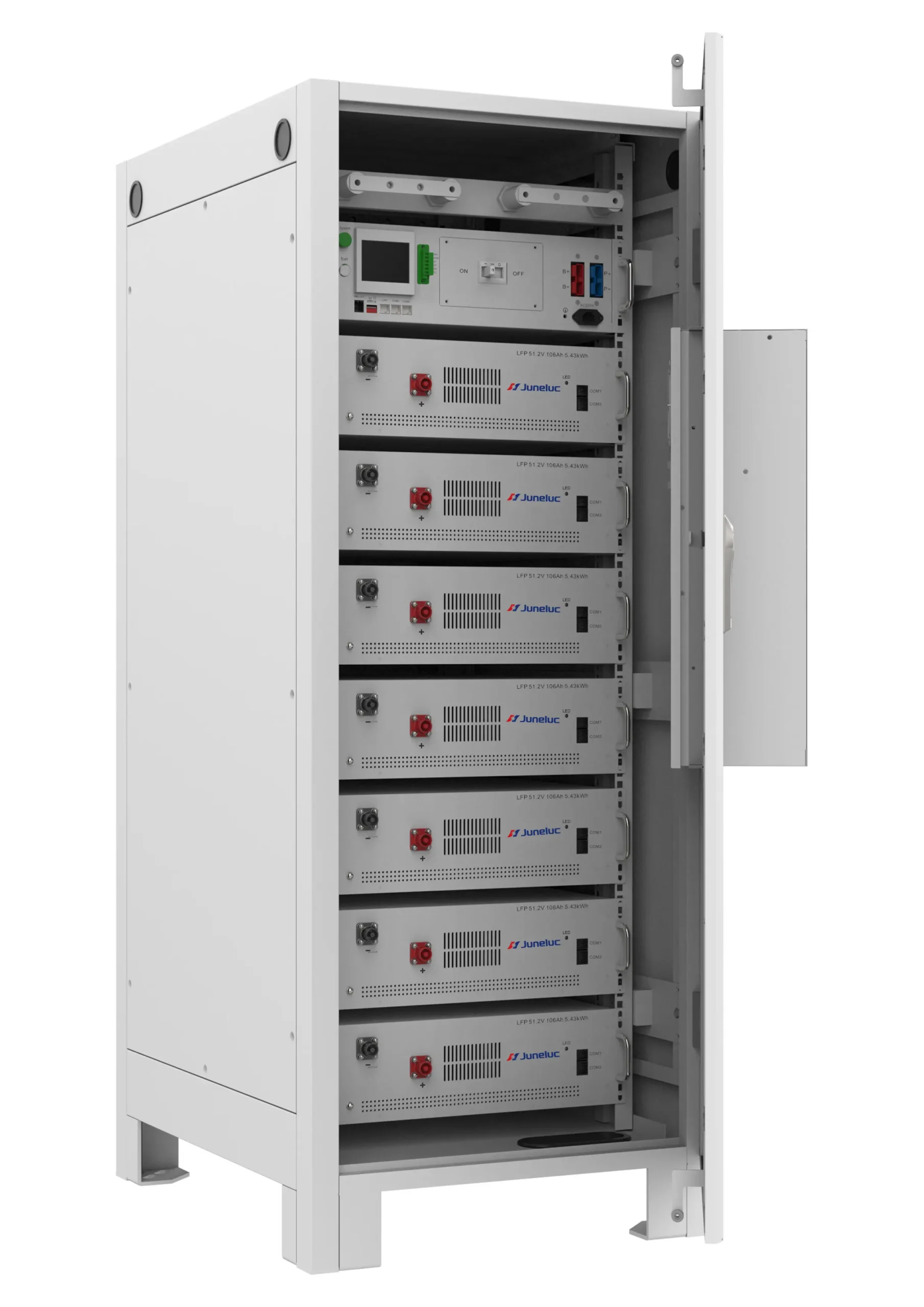

The JLCI-HVC3 is a modular, high-voltage Commercial Energy Storage System designed for indoor use. Featuring a robust three-layer protection architecture and scalable energy options from 35.84kWh to 51.20kWh, it provides a reliable and flexible power solution for commercial and industrial applications.

Add to wishlist

Product Description

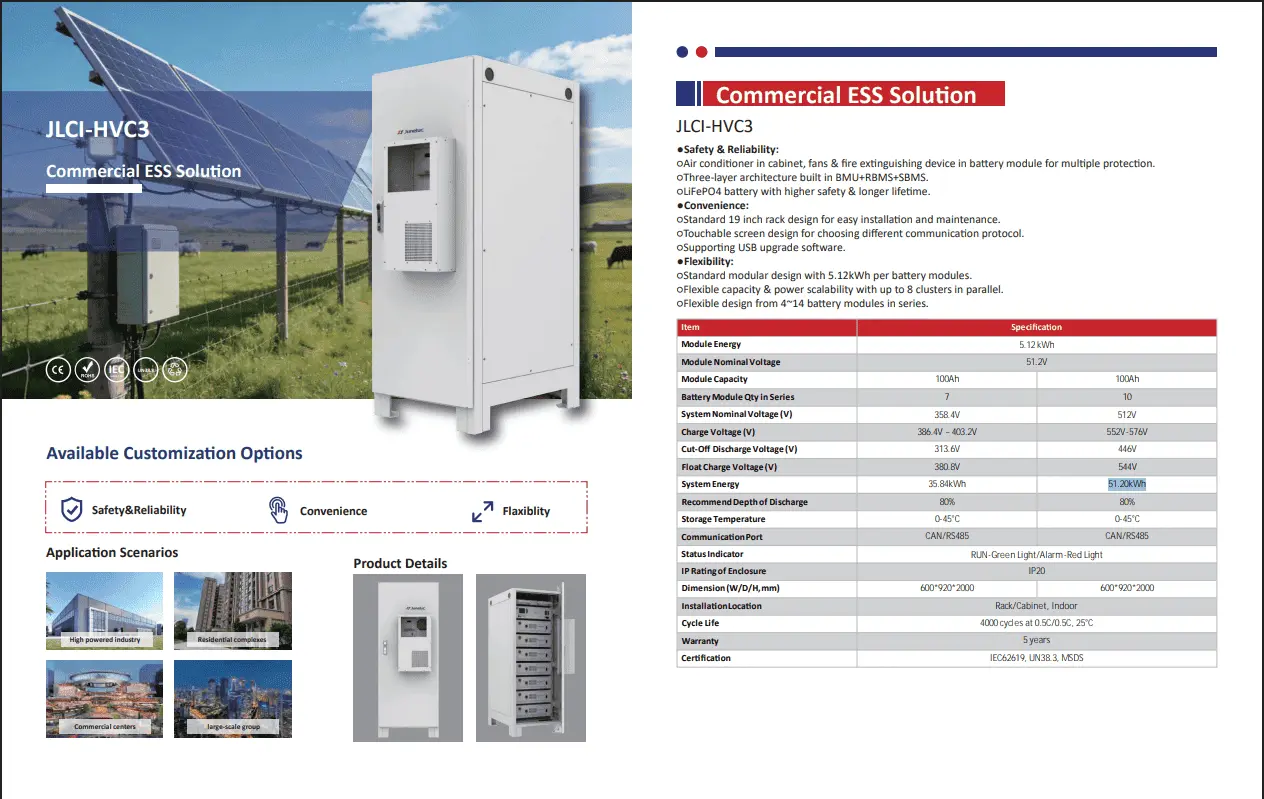

Item	Specification
Module Energy	5.12 kWh
Module Nominal Voltage	51.2V
Module Capacity	100Ah	100Ah
Battery Module Qty in Series	7	10
System Nominal Voltage (V)	358.4V	512V
Charge Voltage (V)	386.4V ~ 403.2V	552V-576V
Cut-Off Discharge Voltage (V)	313.6V	446V
Float Charge Voltage (V)	380.8V	544V
System Energy	35.84kWh	51.20kWh
Recommend Depth of Discharge	80%	80%
Storage Temperature	0-45°C	0-45°C
Communication Port	CAN/RS485	CAN/RS485
Status Indicator	RUN-Green Light / Alarm-Red Light
IP Rating of Enclosure	IP20
Dimension (W/D/H, mm)	10006001600
Installation Location	Rack/Cabinet, Indoor
Cycle Life	4000 cycles at 0.5C/0.5C, 25°C
Warranty	5 years
Certification	IEC62619, UN38.3, MSDS
