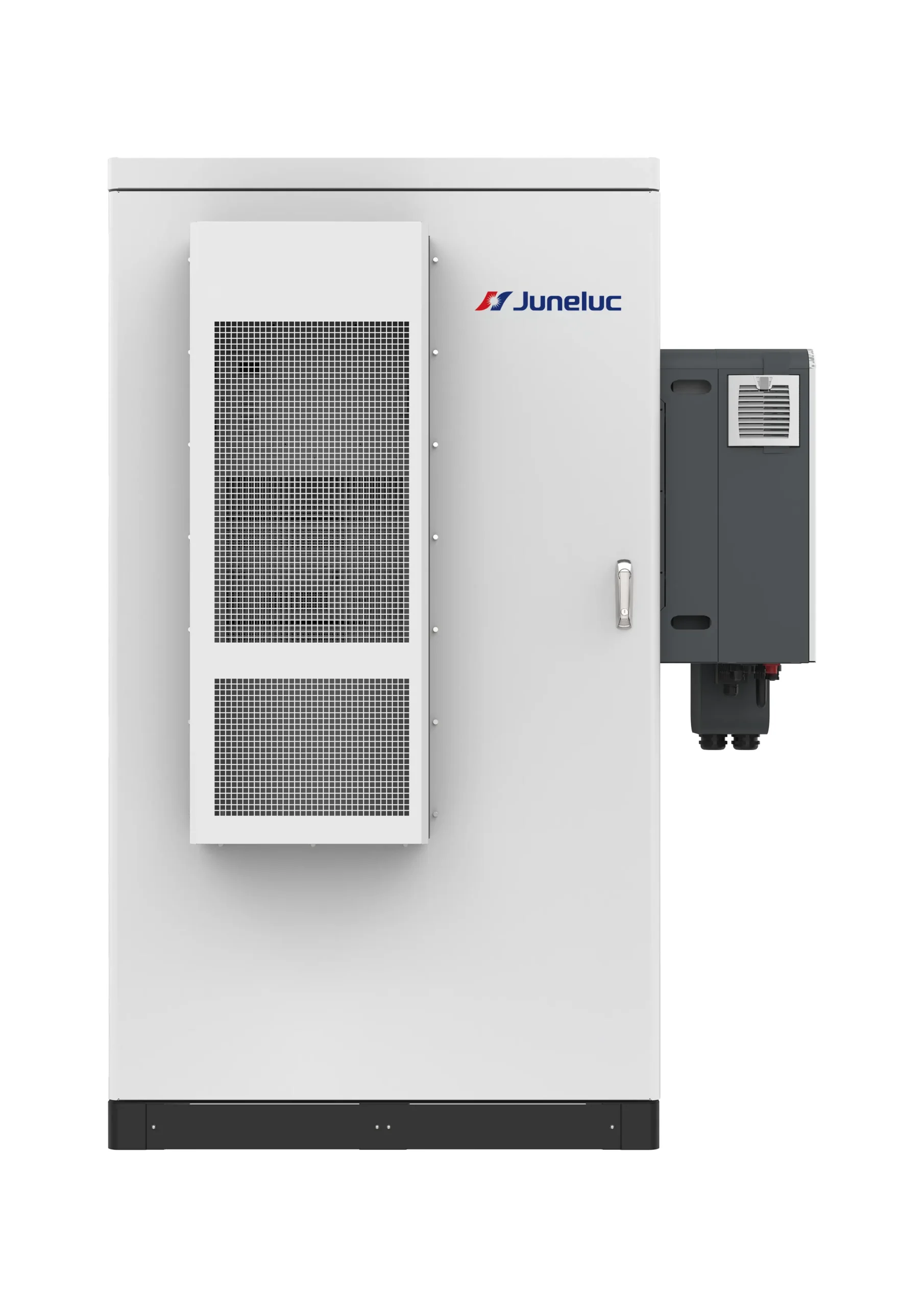

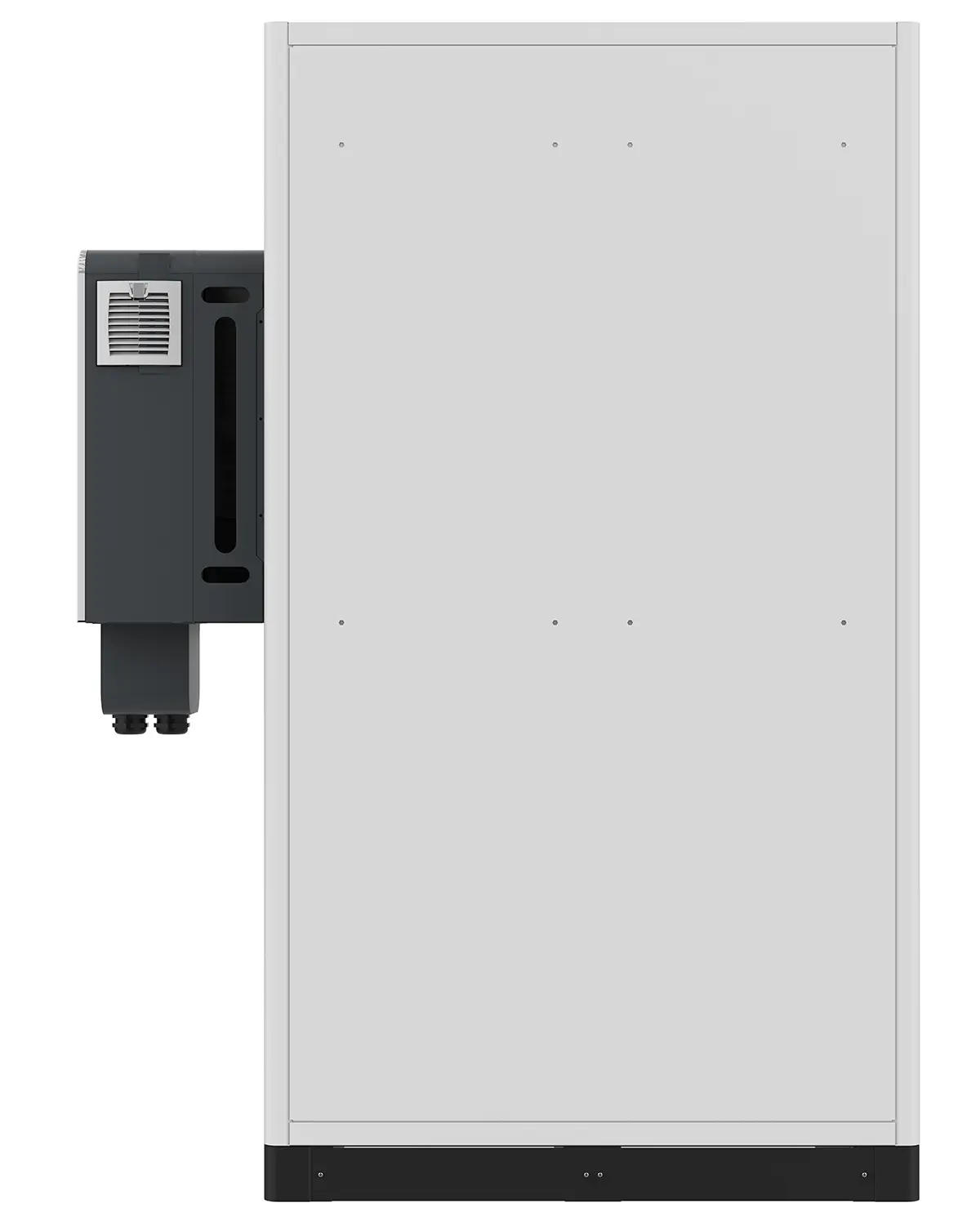

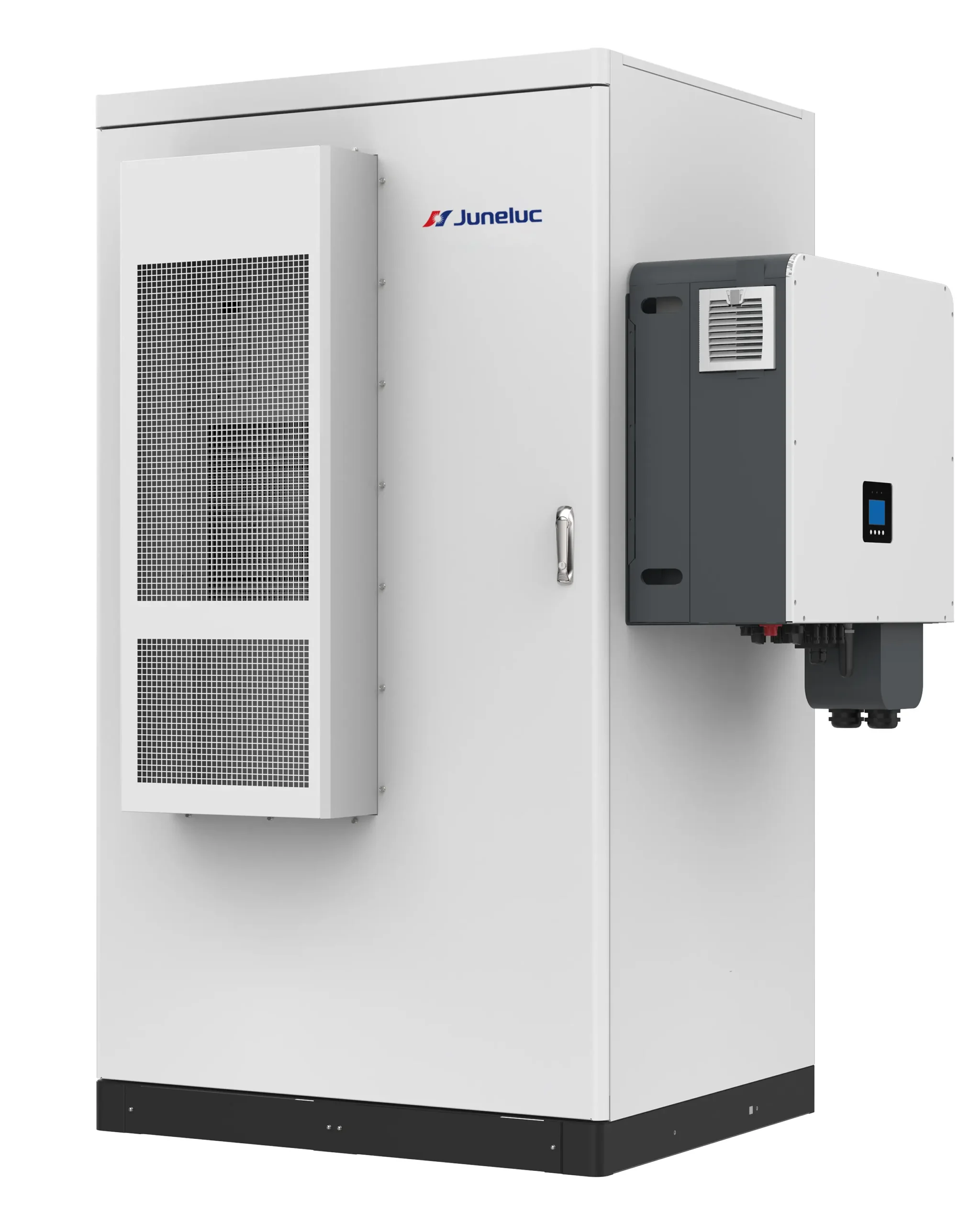

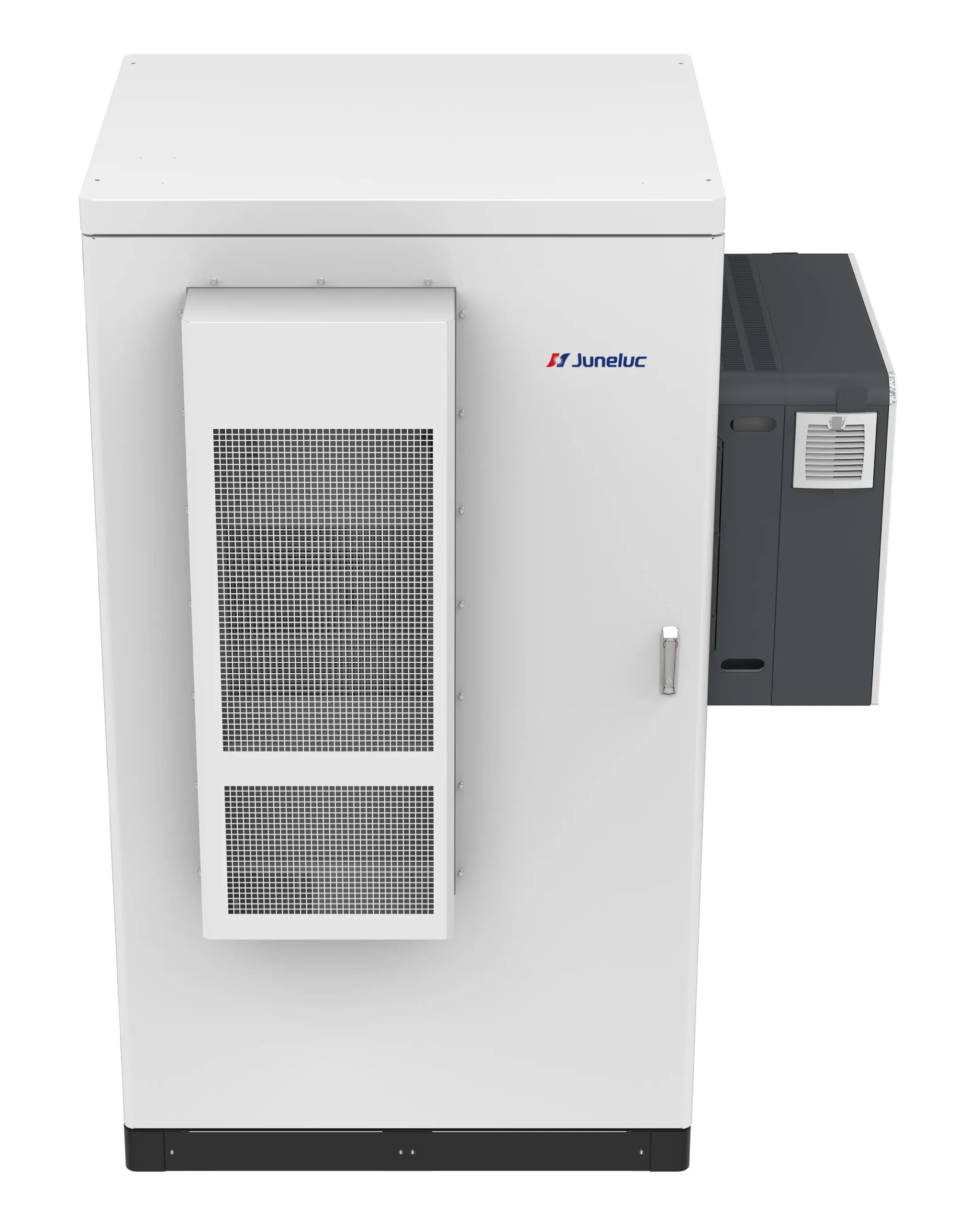

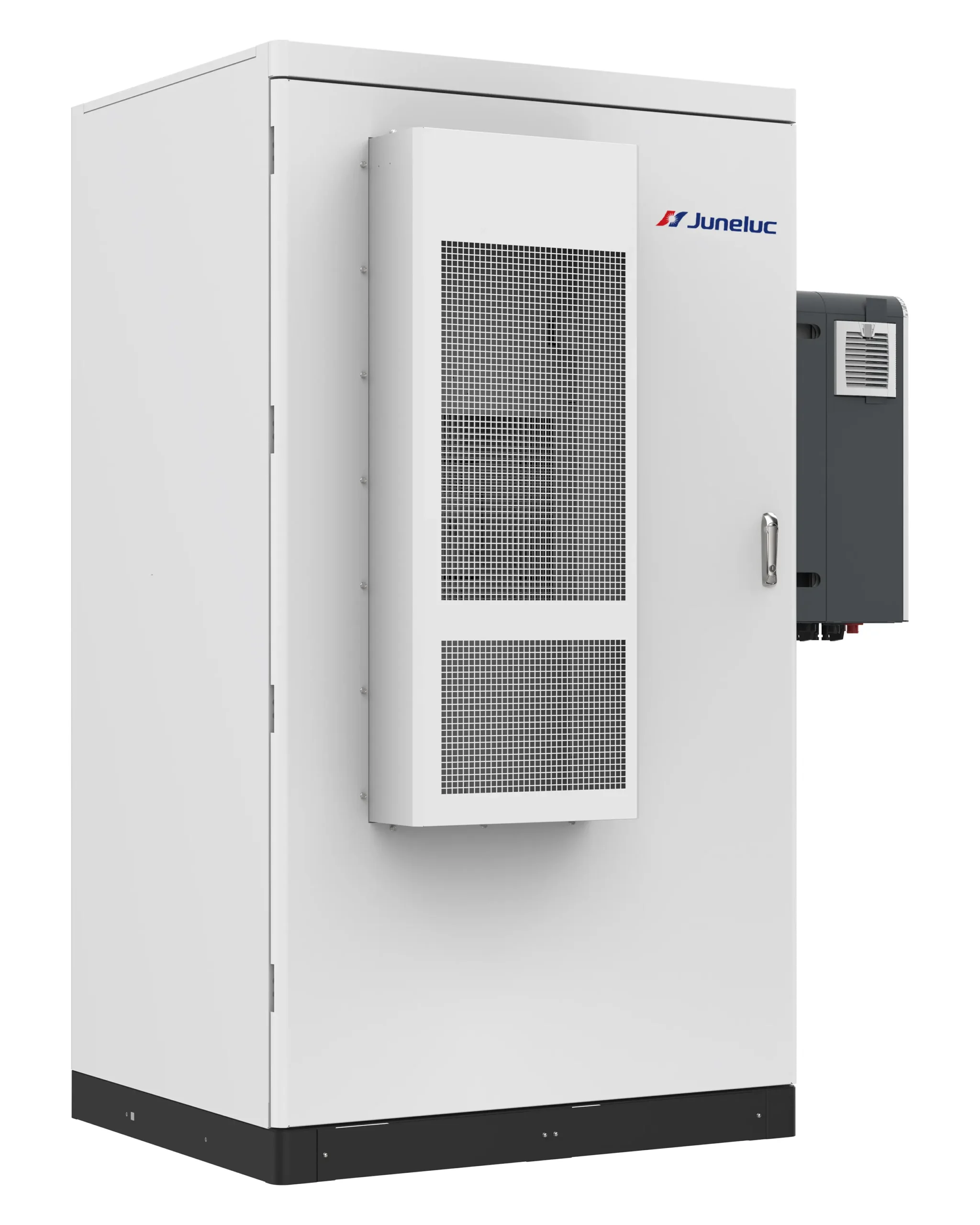

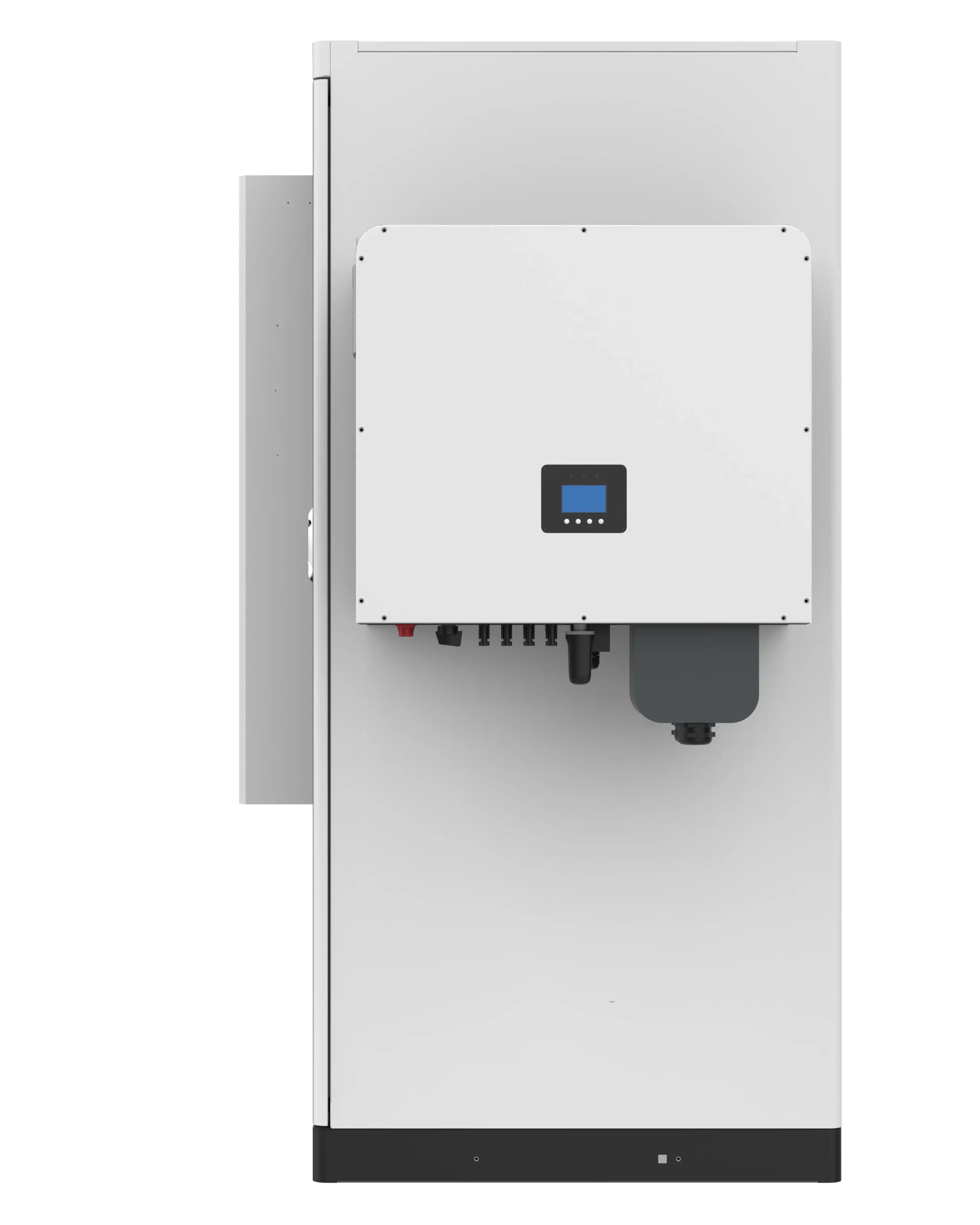

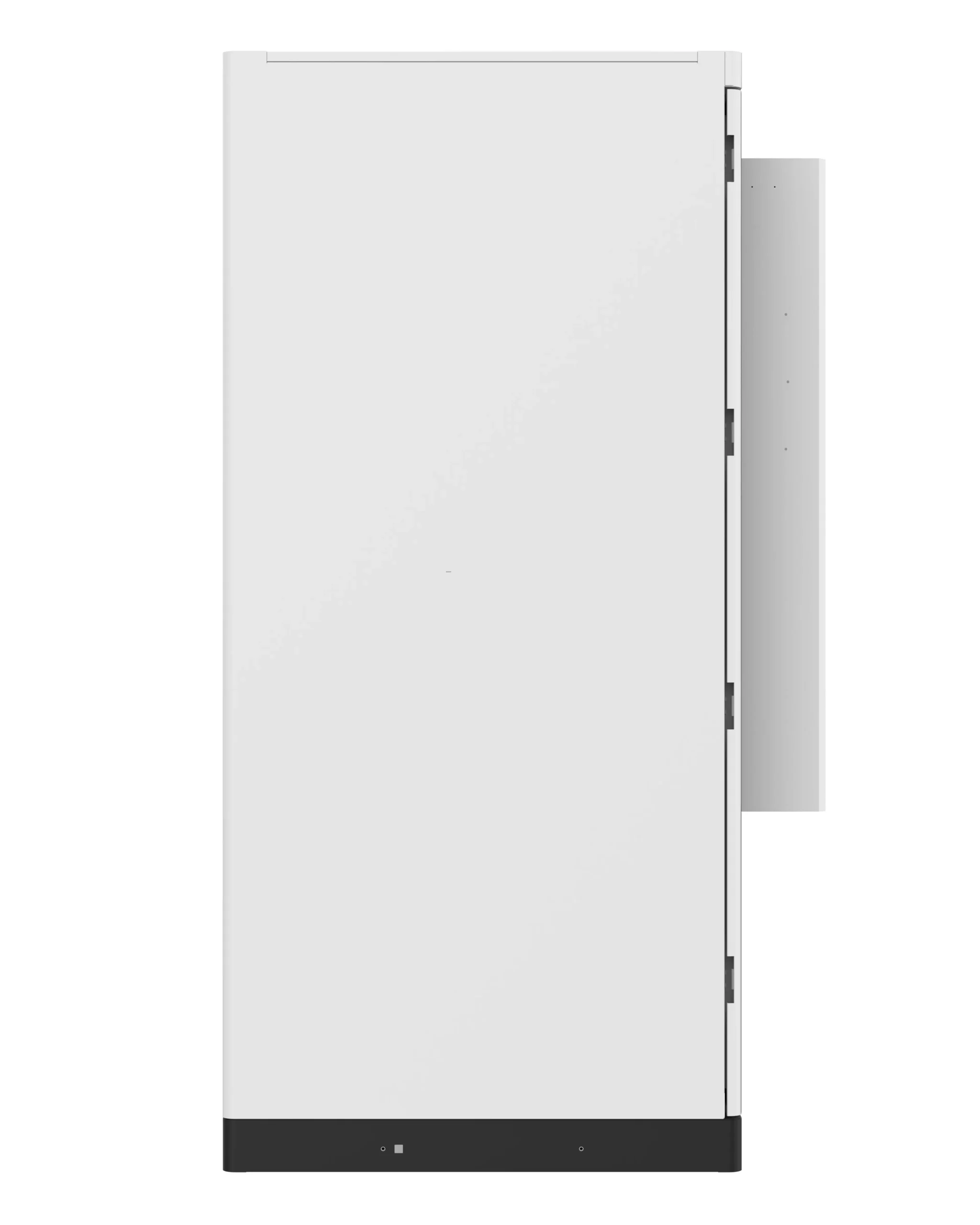

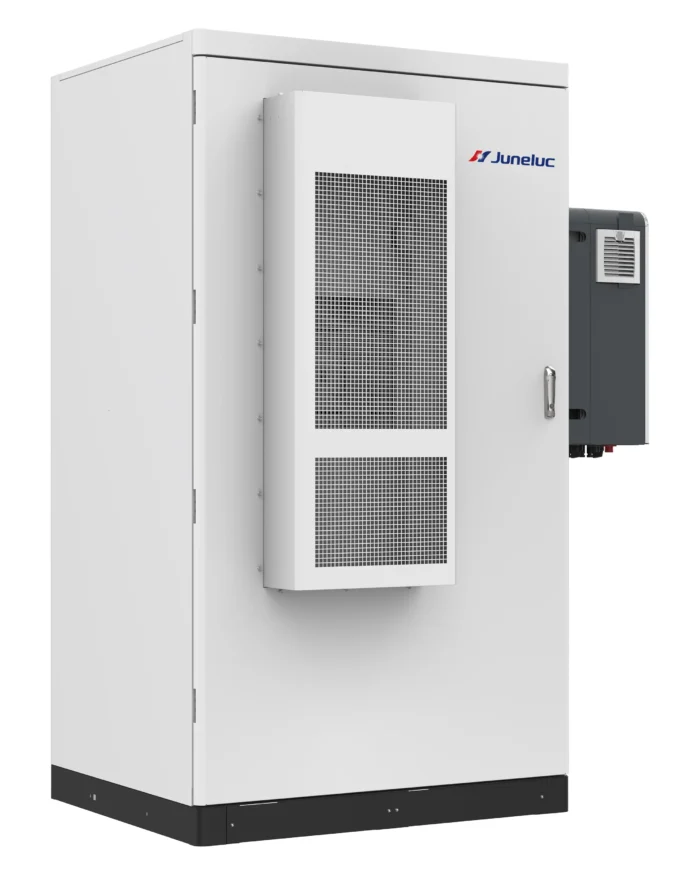

JLCI-HVC1 Commercial ESS Solutions

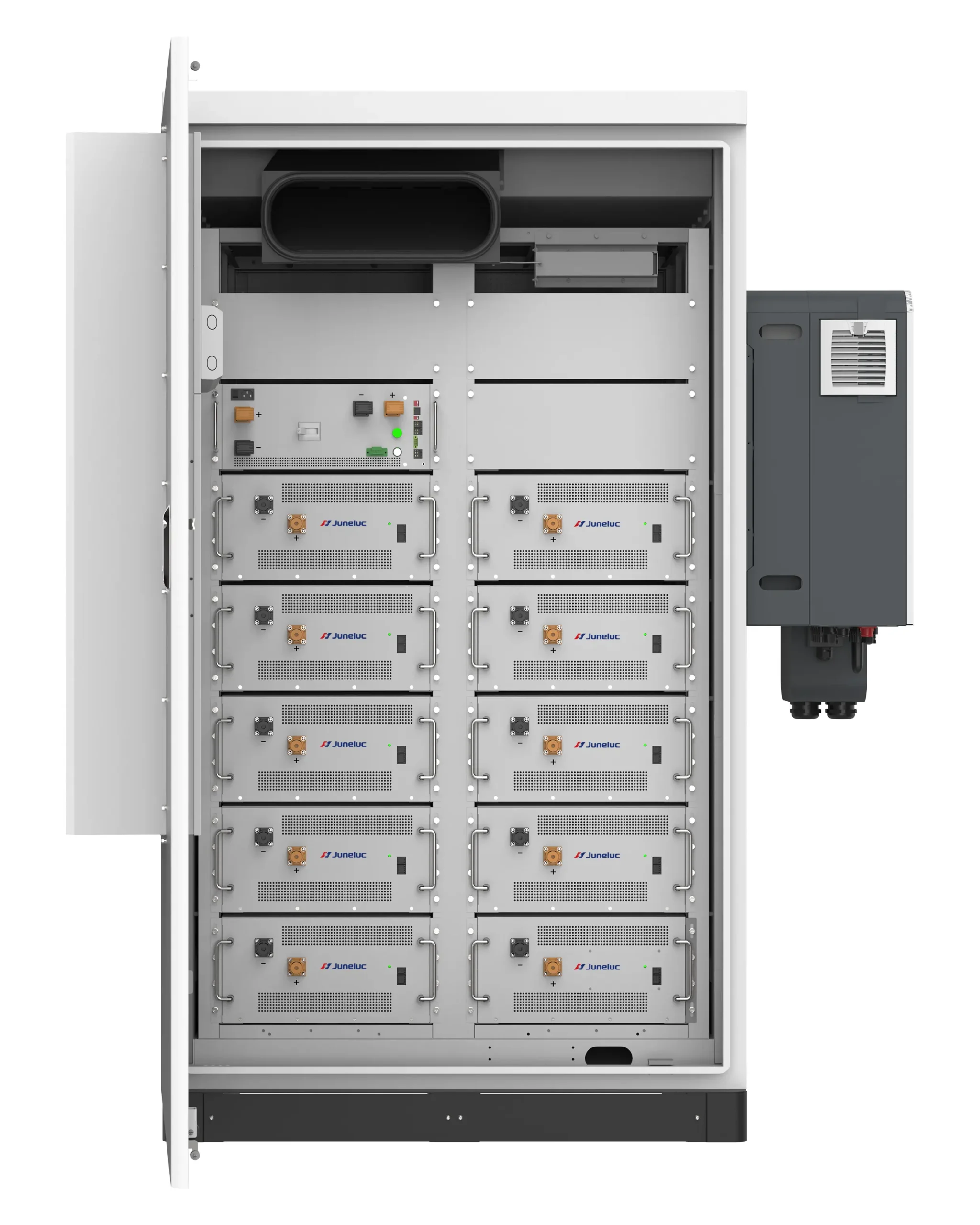

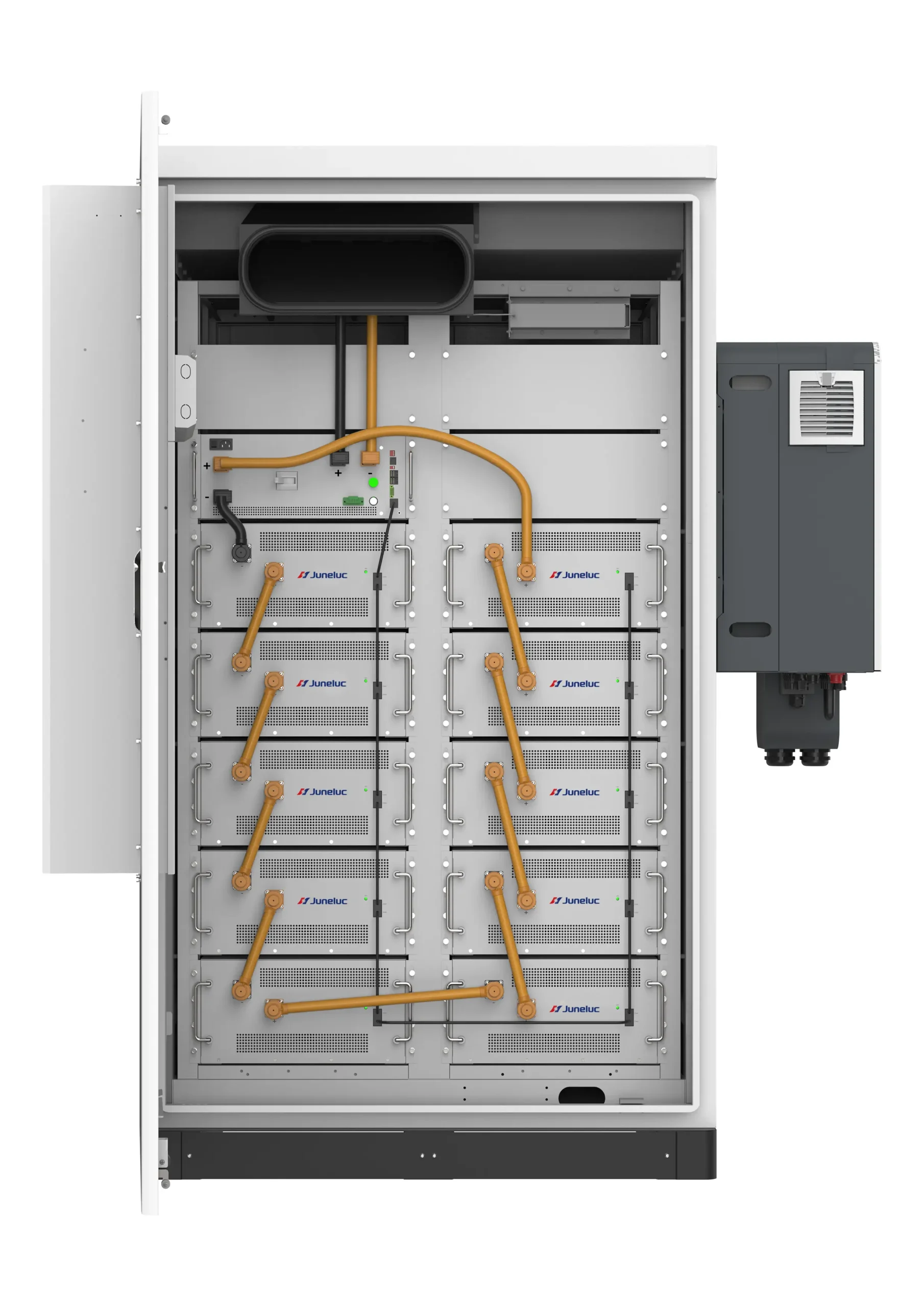

The JLCI-HVC1 is a high-efficiency, all-in-one Commercial Energy Storage System (ESS) providing 102.4kWh of energy capacity with a 50kW power output. Featuring a pre-installed LiFePO4 battery system and an integrated air conditioner, it offers a simple, reliable, and cost-effective backup solution for 2–5 hours of operation.

Add to wishlist

Product Description

Battery Parameters
Cell Chemistry	LiFePO4
Module Energy	10.24 kWh
Module Nominal Voltage	51.2V
Module Capacity	200Ah
Battery Module Qty	10
System Energy	102.4 kWh
System Nominal Voltage	512V
Operating Voltage Range	448V - 576V
Charge/Discharge Efficiency	Max 0.5C
Dimension (WDH)	120010002150 mm
Weight	1430 kg
Operating Temperature Range	-25°C to +50°C
Cooling Method	Air Conditioner
Inverter Parameters DC-PV
Max. PV Voltage	1000V
MPPT Range / Nominal	180V - 1000V
Max. Input Current/String	36A*2
Qty. of MPT	4
Max. Input Power/String	50kW
AC-On-Grid
Rated AC Output Power	50 kW
Max AC Output Power	50kVA
Max AC Current	75A
RatedAC Voltage	400V 3L/N/PE
Rated Grid Frequency / Range	50/60Hz ± 5Hz
AC Current Harmonics	< 3% (100% LOAD)
AC-Off-Grid
Rated AC Voltage	400V 3L/N/PE
Rated Grid Frequency / Range	50/60Hz
Rated AC Output Power	50kW
Max AC Charge / Discharge Current	75A
Switch Time	≤10ms
